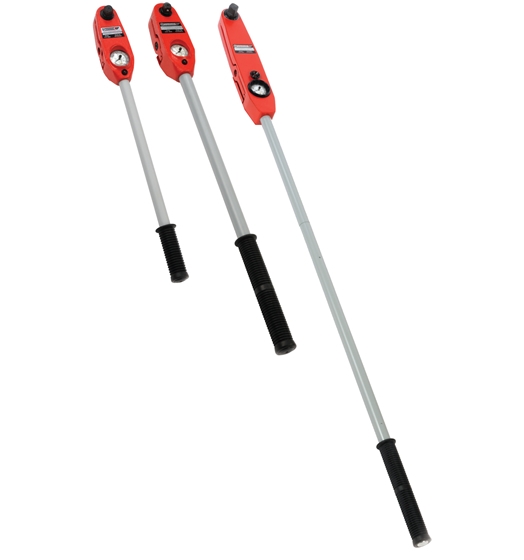

TORQUE TOOLS > TORQUELEADER > CDS, DDS, EDS



Key Benefits of these Torque Screwdrivers:
Robust and versatile tools for Quality Auditing and Production

  • These tools are suitable for use by operators of any skill level. The ease of use and robust design ensures years of dependable service
  • Minimal risk of tool damage is ensured by the built in overload protection system
  • Clockwise and anticlockwise measurement is possible with double ended ratchet as standard
  • Clear indication is given when the target torque has been reached by the audio visual signal system (optional)

Technical Information for these Torque Screwdrivers:

  • These tools are designed and manufactured to exceed the requirements of ISO 6789:2003
  • EPA Compliant
  • Accuracy ± 3% of reading
  • ISO 6789:2003 classification 1B
  • Also available in kgf.cm - see below table
  • Accessories available (end fittings, adaptors, sockets & special extension spanners)
Calibrated Range
Order CodeModelISOImperialDrivemmgSignal
010520 CDS 400 S 80-400 N.m 10 N.m 60-300 lbf.ft 10 lbf.ft ¾" Square M 710 3.2 signal
010620 DDS 800 S 160-800 N.m 20 N.m 120-600 lbf.ft 20 lbf.ft ¾" Square M 1000 4.9 signal
010700 EDS 1400 S 280-1400 N.m 25 N.m 200-1000 lbf.ft 25 lbf.ft 1" Square M 2040 16.7 signal
010720 EDS 2000 S 400-2000 N.m 50 N.m 300-1500 lbf.ft 50 lbf.ft 1" Square M 2040 16.7 signal
010529 CDS 40 SK 8-40 kgf.m 1 kgf.m 60-300 lbf.ft 10 lbf.ft ¾" Square M 710 3.2 signal
010629 DDS 80 SK 16-80 kgf.m 2 kgf.m 120-600 lbf.ft 20 lbf.ft ¾" Square M 1000 4.9 signal
010729 EDS 200 SK 40-200 kgf.m 5 kgf.m 300-1500 lbf.ft 50 lbf.ft 1" Square M 2040 16.7 signal
010229 ADS 400 K 80-400 kgf.cm 10 kgf.cm 72-360 lbf.in 10 lbf.in ⅜" Square M 244 0.52 no signal
