Key Benefits of these Torque Screwdrivers:
Robust and versatile tools for Quality Auditing and Production

  • These tools are suitable for use by operators of any skill level. The ease of use and robust design ensures years of dependable service

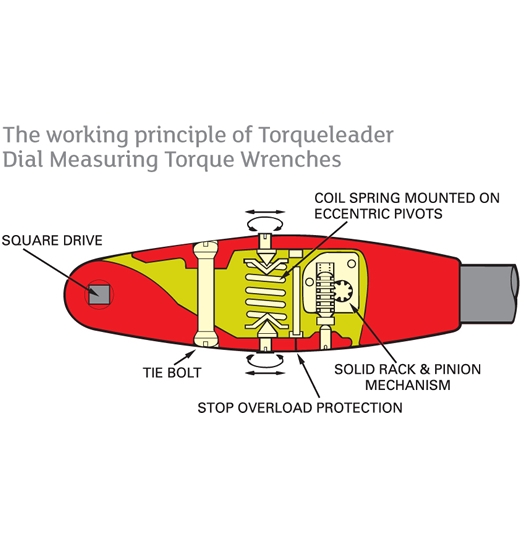

  • Minimal risk of tool damage is ensured by the built in overload protection system
  • Clockwise and anticlockwise measurement is possible with double ended ratchet as standard
  • Clear indication is given when the target torque has been reached by the audio visual signal system (optional)

Technical Information for these Torque Screwdrivers:

  • These tools are designed and manufactured to exceed the requirements of ISO 6789:2003
  • EPA Compliant
  • Accuracy ± 3% of reading
  • ISO 6789:2003 classification 1B
  • Also available in kgf.cm - see below table
  • Accessories available (end fittings, adaptors, sockets & special extension spanners)
Calibrated Range
Order CodeModelISOImperialDrivemmgSignal
010300 BDS 80 A 16-80 N.m 2 N.m 12-60 lbf.ft 1 lbf.ft ⅜" Square M 435 1.35
no signal
010380 BDS 80 AS 16-80 N.m 2 N.m 12-60 lbf.ft 1 lbf.ft ⅜" Square M 440 1.47 signal
010320 BDS 80 E 16-80 N.m 2 N.m 12-60 lbf.ft 1 lbf.ft ½" Square M 435 1.36
no signal
010400 BDS 80 ES 16-80 N.m 2 N.m 12-60 lbf.ft 1 lbf.ft ½" Square M 440 1.49 signal
010410 BDS 100 EF 20-100 N.m 2 N.m 14-70 lbf.ft 2 lbf.ft 1/2 515 1.41 no signal
010415 BDS 100 E 20-100 N.m 2 N.m 168-840 lbf.in 24 lbf.in 1/2 Square 515 1.41 no signal
010340 BDS 160 32-160 N.m 2.5 N.m 24-120 lbf.ft 2 lbf.ft ½" Square M 515 1.41 no signal
010420 BDS 160 S 32-160 N.m 2.5 N.m 24-120 lbf.ft 2 lbf.ft ½" Square M 520 1.54 signal
010360 BDS 200 40-200 N.m 5 N.m 30-160 lbf.ft 5 lbf.ft ½" Square M 515 1.41 no signal
010440 BDS 200 S 40-200 N.m 5 N.m 30-160 lbf.ft 5 lbf.ft ½" Square M 520 1.54 signal
010309 BDS 800 AK 160-800 kgf.cm 20 kgf.cm 12-60 lbf.ft 1 lbf.ft ⅜" Square M 435 1.35 no signal
010389 BDS 800 ASK 160-800 kgf.cm 20 kgf.cm 12-60 lbf.ft 1 lbf.ft ⅜" Square M 440 1.47 signal
010329 BDS 800 EK 160-800 kgf.cm 20 kgf.cm 12-60 lbf.ft 1 lbf.ft ½" Square M 435 1.36 no signal
010409 BDS 800 ESK 160-800 kgf.cm 20 kgf.cm 12-60 lbf.ft 1 lbf.ft ½" Square M 440 1.49 signal
010349 BDS 16 K 3.2-16 kgf.m 0.5 kgf.m 24-120 lbf.ft 2 lbf.ft ½" Square M 515 1.41 no signal
010429 BDS 16 SK 3.2-16 kgf.m 0.5 kgf.m 24-120 lbf.ft 2 lbf.ft ½" Square M 520 1.54 signal
010369 BDS 20 K 4-20 kgf.m 1 kgf.m 30-160 lbf.ft 5 lbf.ft ½" Square M 515 1.41 no signal
010449 BDS 20 SK

4-20 kgf.m

 1 kgf.m 30-160 lbf.ft 5 lbf.ft ½" Square M 520 1.54 signal
010229 ADS 400 K 80-400 kgf.cm 10 kgf.cm 72-360 lbf.in 10 lbf.in ⅜" Square M 244 0.52 no signal
