Standard equipment
• 2 pcs.V-blocks/straightening blocks
• Replaceable hardened nose cap
• Glycerine damped pressure gauge in tons

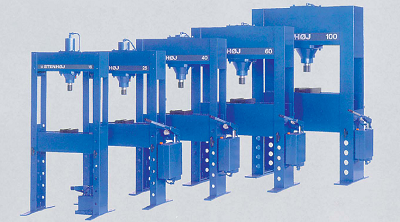

CP16 – CP25 – CP40 – CP60 – CP100
• Single-acting cylinder with internal
return
• Manual adjustment of press bed
• 2-stage hand or foot operated pump unit

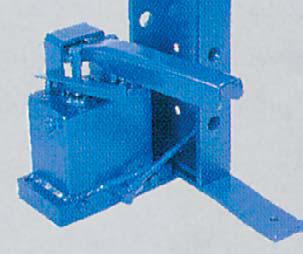

Hand pump unit
• Low and high pressure and return
movement operated with single hand
pump lever
• Automatic change-over from low to
high pressure
• Hand lever can be stored vertically
• The press must be connected external
compressed air supply (CP-16
and CP-25 excepted)
Foot pump unit
• Automatic change-over from low to
high pressure
• Separate pedal for return movement
