ZECA - GARAGE TOOLS - 417 RADIATOR FILL

PRODUCT FEATURES:
Device for rapidly filling the radiator and the cooling system of cars and trucks.
The system works by vacuum, and allows a rapid and total filling of the cooling system without any need to start the vehicle several times during the filling operations. When a cooling system is filled with liquid, air bubbles are generated, and these must be completely eliminated. With radiator fill, a vacuum inside the system is created that allows a full and rapid filling, in a short time and without any problems. Vacuum is generated using compressed air. Radiator fill suits both cars and lorries. Together with the kit, 3 different size cones are supplied to fit different radiator necks. The device works on a system previously freed from any liquid, and allows also its tightness test.

TECHNICAL DATA:

  • Working pressure from 5,5 to 12,0 bar
  • Max air use 100 l/min to 6 bar
  • Air connexion 1/4” F
  • Temperature from -20℃ to +50 ℃
  • Adapters:
    1. Ø 16 - 33 mm
    2. Ø 23 - 41 mm
    3. Ø 34 - 52 mm

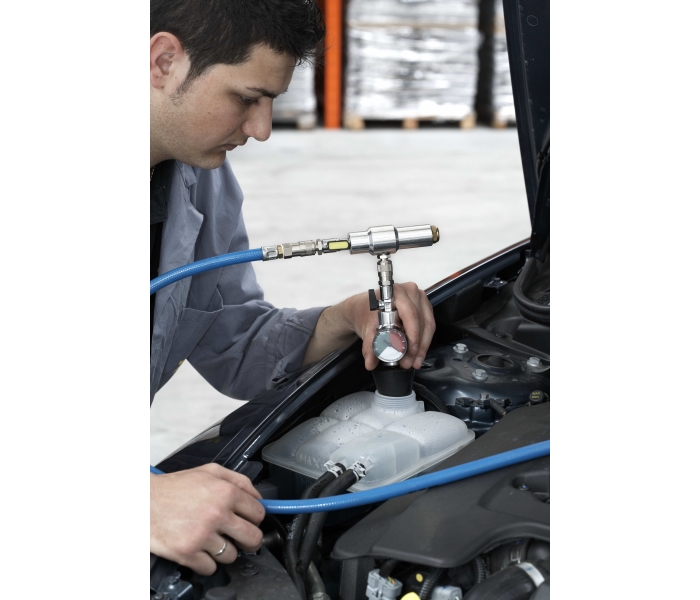

Application:

Demonstration:
