The new generation of WEBER-HYDRAULIK rescue cutters are the result of continuous development to further improve the renowned reputation of WEBER-HYDRAULIK cutters, which have lead the market for many years.

As manufactures continue to improve the strength and composite of materials used within automobile construction, the demands of the rescue equipment increases with each new vehicle generation. Offering a maximum cutting force of 1,050 Kn our latest cutter, the "New" RSX 200-107 ensures that the most modern materials in cars and trucks are tackled with ease.

Designed blade geometry pulls the materials to be cut, into the centre of the blade arrangement, thus always guaranteeing optimum cutting performance. Additionally to aid the cutting of round/bar material the base of the blades are equipped with an aggressive bolt cutting serration recess which enables solid material up to 43mm diameter to be cut simply and safely.

Complete with a 360° adjustable and removable handle, combined with its comparatively low weight and unique push button control, further ensures that this ultimate rescue tool is operated with ease.

Cutters S 50-14 S 200-49 S 270-71 C 100-31 RSX 105-29 RSX 160-50 RSX 165-65 RSX 185-105
ALL NINE		 RSX 200-107 RSX 200-107 PLUS
Opening 50 mm 200 mm 280 mm 120 mm 105 mm 163 mm 165 mm 185 mm 200 mm 200 mm
Max. cutting force* 14 t 49 t 71 t 308 kN 29 t 50 t 65 t 105 t 107 t 107 t
Cutting capacity (round steel bar)* ⌀ 20 mm ⌀ 32 mm ⌀ 36 mm - ⌀ 22 mm ⌀ 32 mm ⌀ 38 mm ⌀ 45 mm ⌀ 43 mm ⌀ 43 mm
Weight 4,3 kg 14,2 kg 17,0 kg 19,5 kg 9,3 kg 14,6 kg 16,3 kg 22,5 kg 19,9 kg 20,9 kg
EN-Class AC 50-B-4 BC 166-H-14 CC 210-H-17 AC120-C-20 AC 105-E-9 BC 160-H-15 BC 165-F-16 CC 240-H-23 CC 200-H-20 CC 200-H-21
NFPA-Class A4 / B3 / C2 / D4 / E3 A6 / B7 / C7 / D8 / E8 A7 / B8 / C7 / D8 / E9 A4 / B3 / C5 / D6 / E6 A5 / B4 / C5 / D6 / E6 A7 / B7 / C6 / D7 / E8 A8 / B6 / C6 / D7 / E9 A9 / B9 / C9 / D9 / E9 A8 / B9 / C8 / D9 / E9 A8 / B9 / C8 / D9 / E9

*according EN 13204 at 700 bar

S 50-14
Compact cutter for tension-free cutting.

  • Tension-free cutting, no uncontrolled movement of the material being cut
  • Compact - for use in confined spaces such as vehicle foot wells
  • Light weight - for one-handed operation

Back to top

S 200-49
Universal cutter for toughest applications. DIN EN, NFPA certified.

  • Optimal force and opening for toughest operations
  • Excellent power to weight ratio with perfect balance
  • Curved blades - clasp the material to be cut

Back to top

S 270-71
The heavy-duty cutter for the toughest operations.

  • Very large opening width - door posts and sills of all current cars are cut with a single action
  • Maximum cutting force suitable for the newest materials and techniques used in vehicle manufacture
  • Excellent power to weight ratio and balance

Back to top

C 100-31
Specialised tool for continious cutting.

  • Surplus materials is automaticlly removed
  • Special serrated surface for aggressive cutiing
  • Cylinder body and housing made of high strength aluminium alloy with wear resistant surface

Back to top

RSX 105-29
Extremely light but powerful cutter.

  • New Xtreme cutting technology for excellent cutting performance
  • Compact and slim shape

Back to top

RSX 160-50

  • New Xtreme cutting technology clasps the material to be cut
  • Maximum cutting force suitable for the newest materials and techniques used in vehicle manufacture
  • Shorter blades - excellent working

Back to top

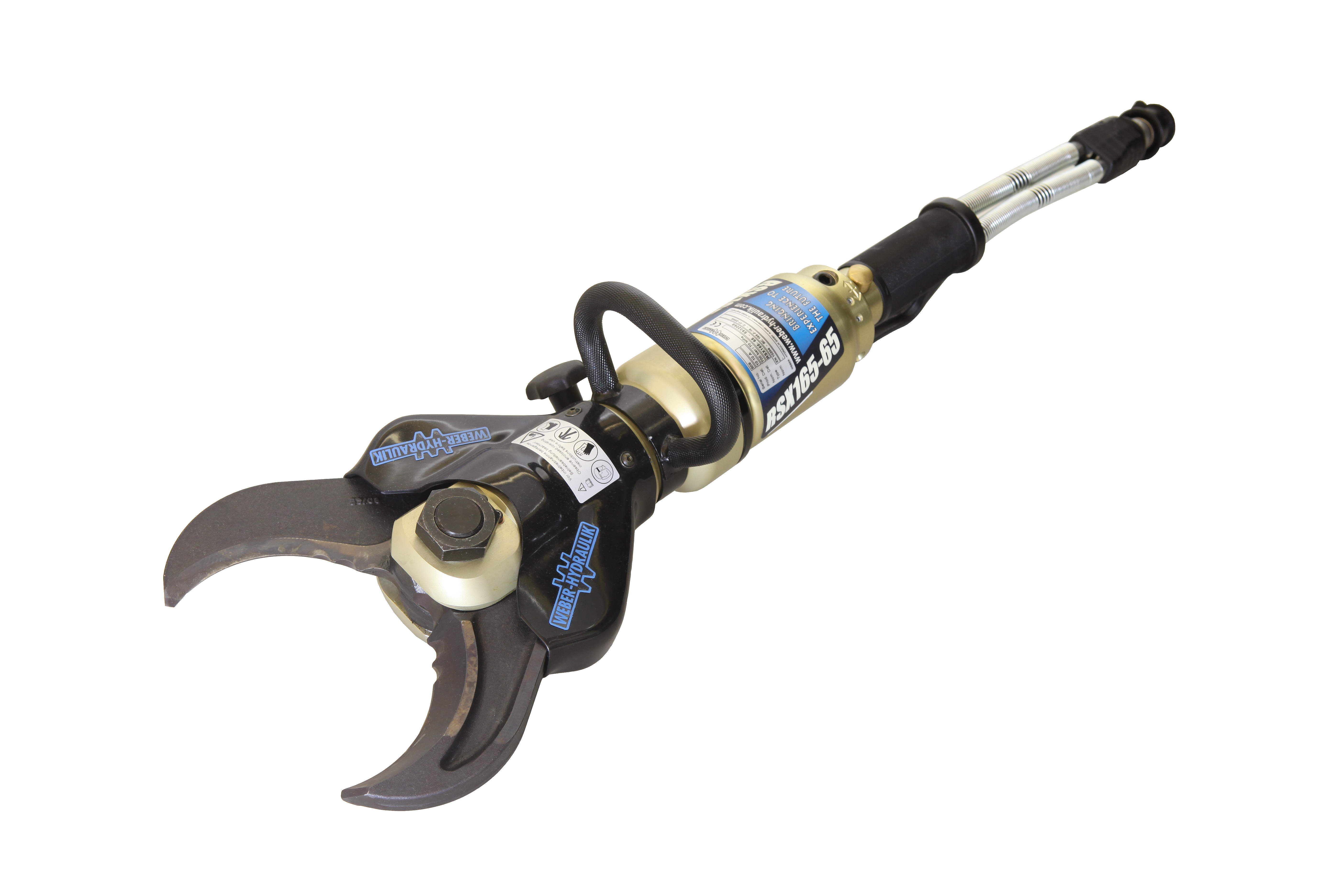

RSX 165-65
Cutter without compromise for high strength materials.

  • New Xtreme cutting technology clasps the material to be cut
  • Maximum cutting force suitable for the newest materials and techniques used in vehicle manufacture
  • Shorter blades - excellent working

Back to top

RSX 185-105 ALL NINE

  • Xtreme cutting technology for excellent cutting
  • only cutter worldwide with maximum NFPA-Class

Back to top

RSX 200-107
Power and Cutting Performance like never before.

  • New Xtreme cutting technology clasps the material to be cut
  • Up to 107 tons cutting force
  • 200mm blade opening to fully surround modern A, B & C posts
  • New blade design to maximize cutting efficiency
  • Aggressive blade cross-over compliments the immense power available
  • Perfectly balanced
  • Weber's unique button control for precise handling

Back to top

RSX 200-107 PLUS

  • Cutter blades with inserts made of high strength alloy to cut high strength and reinforced vehicle body parts
  • Long blade life due to less wear and tear of inserts
  • Better performance
  • Lower maintenance costs (change inserts, not blades)
  • Patent pending
