| BRANDS > PREVOST > FEMALE THREADED COUPLING / ADAPTOR |
| |
| |

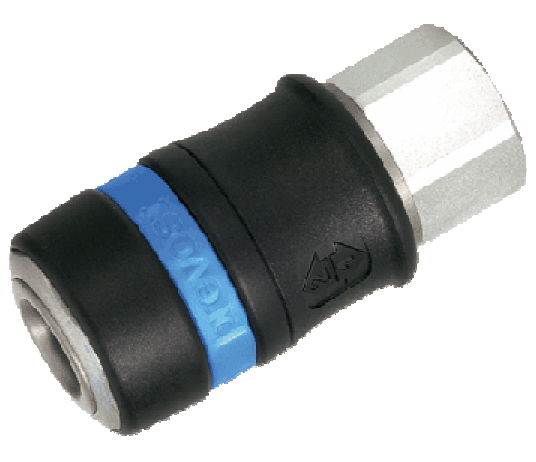

Female Threaded Coupling
Flow rate at 6 bar : DP 0,6 b = 4 160l/min
ID Passage : 11 mm
Pressure : P.N. 12 bar Mini 2 bar
Temperature : - 15°C + 70°C
Lightweight : 150 gr
Construction : Composite
Use : Pneumatic tools
Colour : Black / Blue
| Description | Reference |
|---|
| G 3/8 | 111102 |
| G 1/2 | 111103 |
| G 3/4 | 111104 |
 |

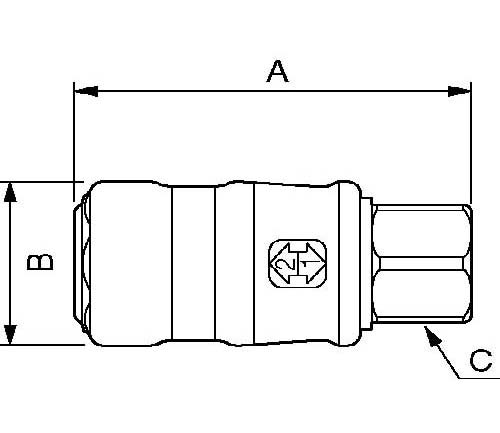

A | B | C | Description |
|---|
| 75.4 | 43 | 30 | G 3/8 |
| 86 | 43 | 30 | G 1/2 |
| 83.7 | 43 | 30 | G 3/4 |

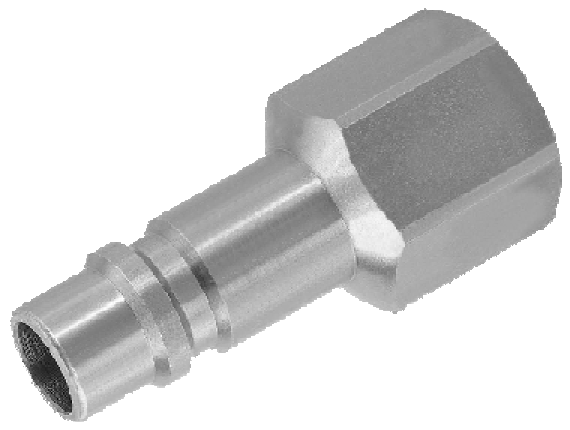

Female Threaded Adaptor
Hardness : Abrasion-resistant
Hardness : 650 Hv
ID Passage : 11 mm
Accuracy : Precise dimensions
Pressure : 16 bar
Construction : Treated steel
| Description | Reference |
|---|
| G 3/8 | 116102 |
| G 1/2 | 116103 |
| G 1/2 (slow-vent adaptor) | 116103PL |
 |

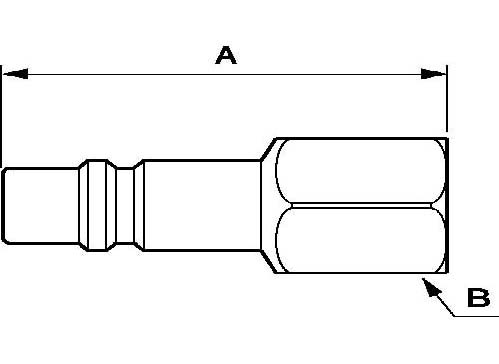

A | B | Description |
|---|
| 60 | 25 | G 3/8 |
| 60 | 25 | G 1/2 |
| 76 | 27 | G 1/2 (slow-vent adaptor) |
|
| |
| |
