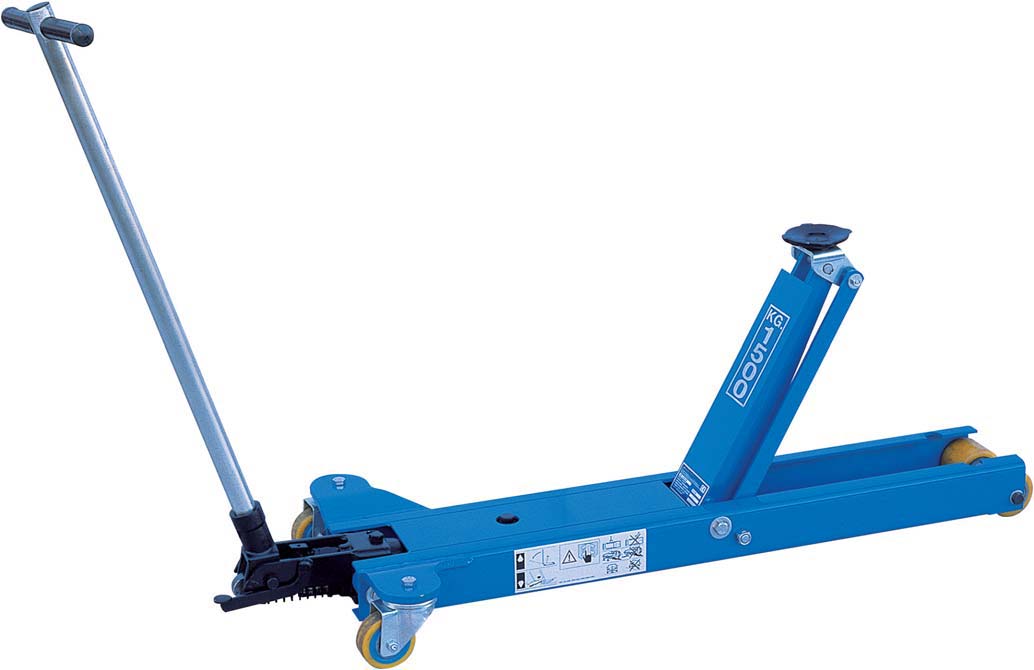

Art. 1130/XR - 1.5 Ton.
with polyurethane wheels, super-lowered

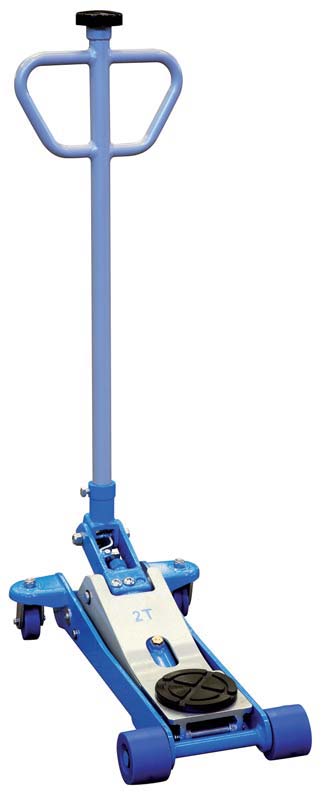

Art. 3000 - 2 Ton.
Art. 3010 - 2 Ton.
Top series

Technical and structural lay-out:

• Completely innovative design.
• Very low profile.
• Ergonomic handle.
• Support holder with wide base.
• Rubber covered support.
• Nylon wheels (for Art. 3000).
• Equipped with double frontal balancing rolls and rear turning wheels in polyurethane (for Art. 3010).
• Foot descent-control (for Art. 3010).
• Hand descent-control (for Art. 3000).

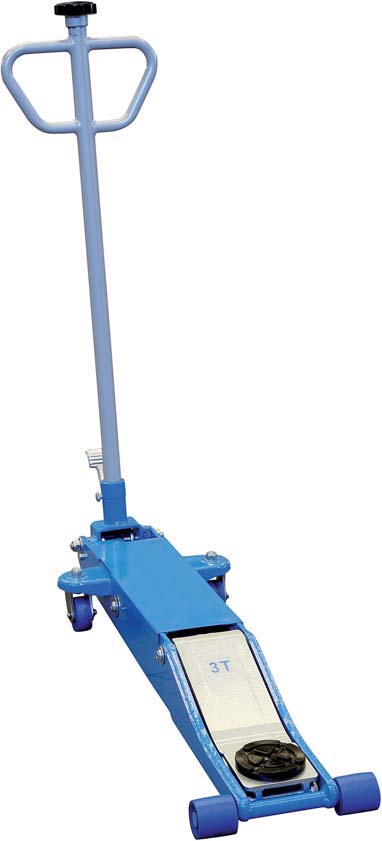

Art. 3020 - 3 Ton.
Top series

Technical and structural lay-out:

• Completely innovative design.
• Very low profile.
• Ergonomic handle.
• Support holder with wide base.
• Equipped with foot-approaching control.
• Hand descent-control.
• Rubber covered support.
• Nylon wheels.

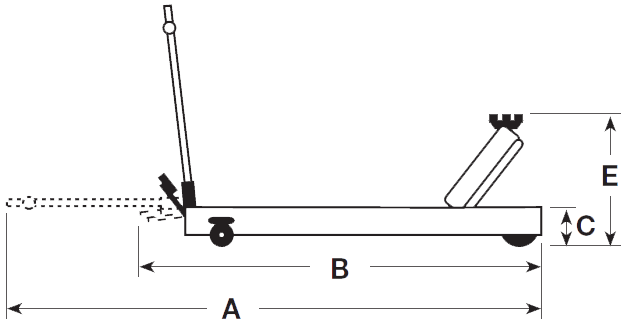

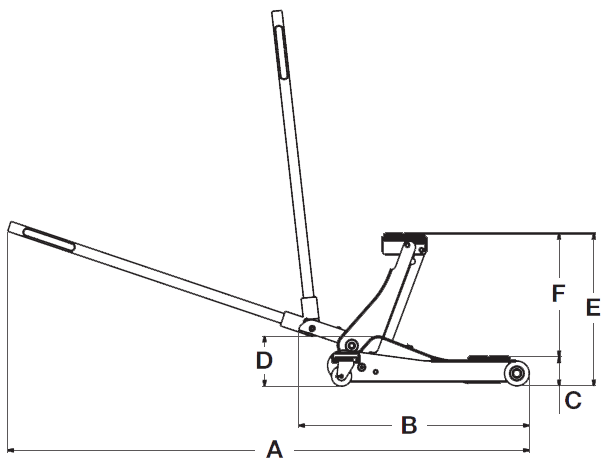

	Art.	Capacity on the plate Ton.	Max. width mm.	Weight Kg.	A	B	C	D	E	F
	1130/XR	1.5	360	50	2120	1320	100	-	510	-
	3000	2	350	36	1520	660	95	200	480	385
	3010	2	480	62	1800	1000	95	210	710	615
	3020	3	290	52	2030	1260	90	145	505	415
