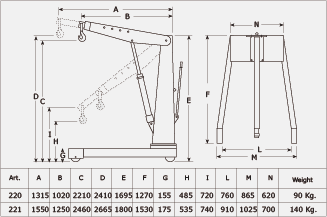

TROLLEY HYDRAULIC CRANES "SERIES SLE" - Art. 220, 221
Demountable crane, 0,5 and 1 Ton., fitted with double-acting pump.
Jib extensible in 4 working-positions.

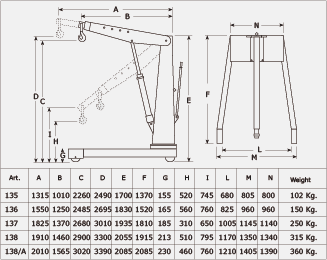

TROLLEY HYDRAULIC CRANES "SERIES SUPER L" - Art. 135, 136, 137, 138, 138/A
Demountable crane, 0,5 - 1 - 1,5 - 2 - 2,5 Ton., fitted with double-acting pump.
Jib extensible in 4 working-positions.

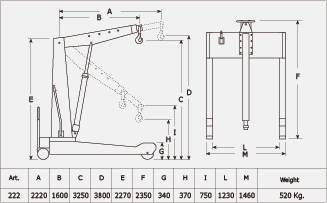

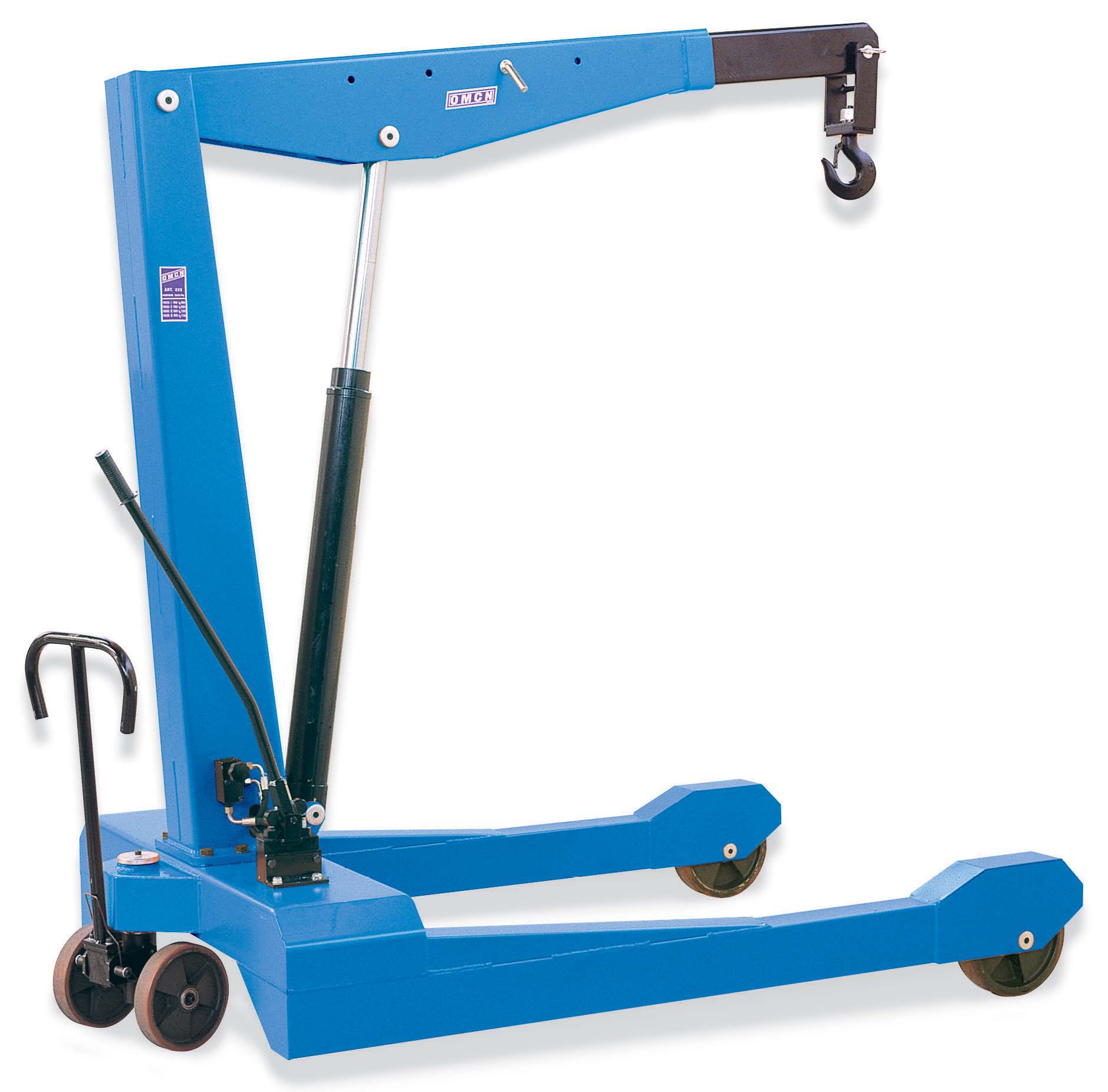

TROLLEY HYDRAULIC CRANE - Art. 222
Demountable crane 3 Ton., fitted with double acting pump.
Properly studied to take power unit out of lorries with tripping operating cab.

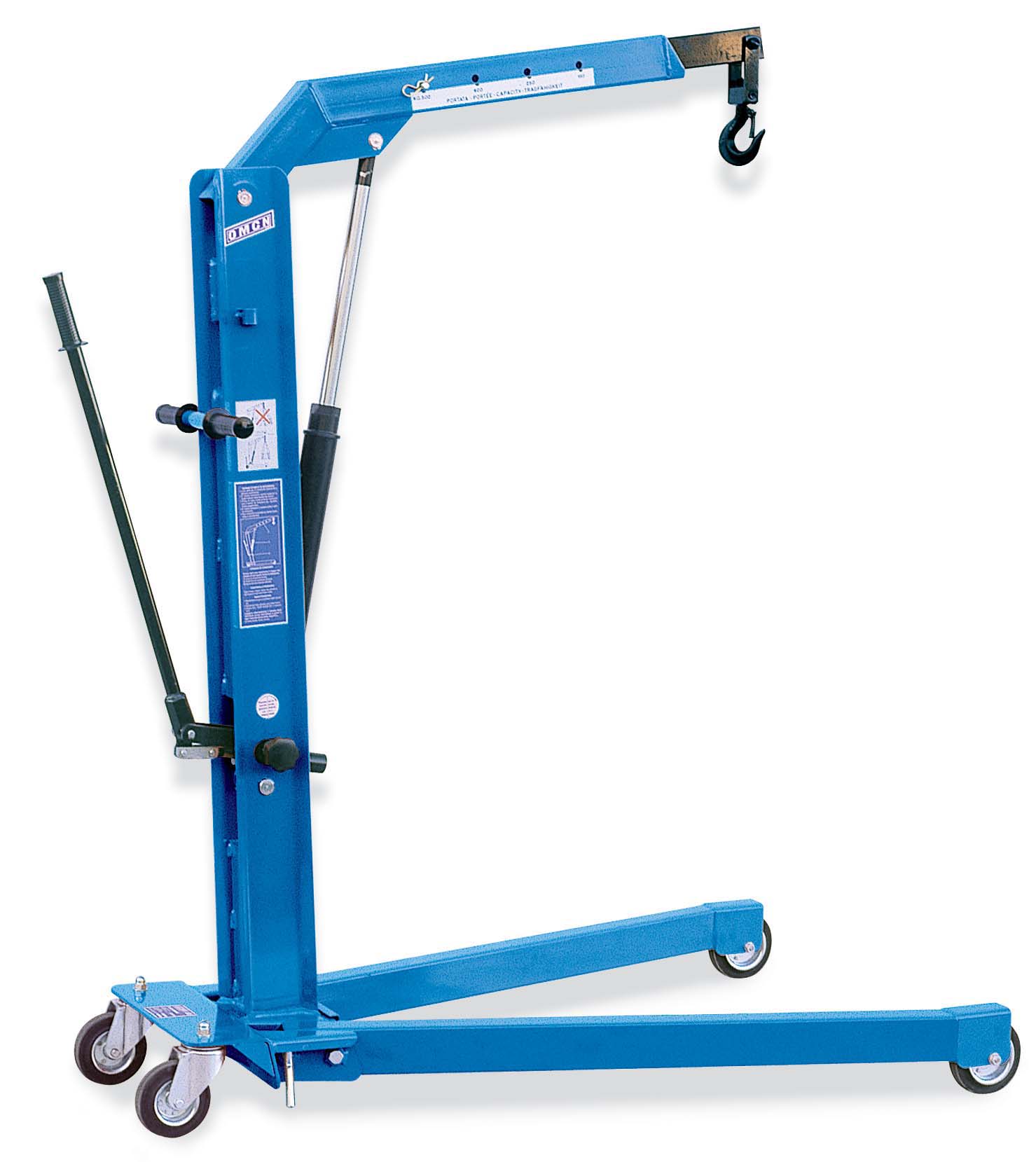

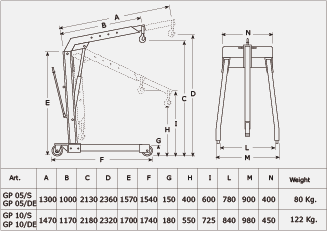

FOLDING HYDRAULIC CRANES "GP SERIES" - Art. GP 05/S, GP 05/DE, GP 10/S, GP 10/DE
This series of “GP” cranes has been conceived and realized to be used in every kind of work environment and in the most straitened space conditions.
The particular technical features of realization allow a very easy and rational use added to a derisory obstruction of the item itself at the end of the use.
The "GP/S" models are with single-acting pump.
The "GP/DE" models are with double-acting pump.
| Art. | Capacity | I Hole | II Hole | III Hole | IV Hole | Wheels |
|---|
| ton. |
|---|
| 220 | 0,5 | 0,5 | 0,4 | 0,25 | 0,15 | rubber wheels |
| 221 | 1 | 1 | 0,8 | 0,5 | 0,3 | wheels of rubber and nylon |
| 135 | 0,5 | 0,5 | 0,4 | 0,25 | 0,15 | rubber wheels |
| 136 | 1 | 1 | 0,8 | 0,5 | 0,3 | wheels of rubber and vulkollan |
| 137 | 1,5 | 1,5 | 1,2 | 0,8 | 0,5 | wheels of vulkollan |
| 138 | 2 | 2 | 1,5 | 1 | 0,6 |
| 138/A | 2,5 | 2,5 | 2 | 1,5 | 1 |
| 222 | 3 | 3 | 2,7 | 2,55 | 2 |
| GP 05/S | 0,5 | 0,5 | 0,4 | 0,25 | 0,15 | rubber wheels |
| GP 05/DE |
| GP 10/S | 1 | 1 | 0,8 | 0,5 | 0,3 | wheels of rubber and nylon |
| GP 10/DE |
|
