Auto range, Separate probe, AC output, Memory

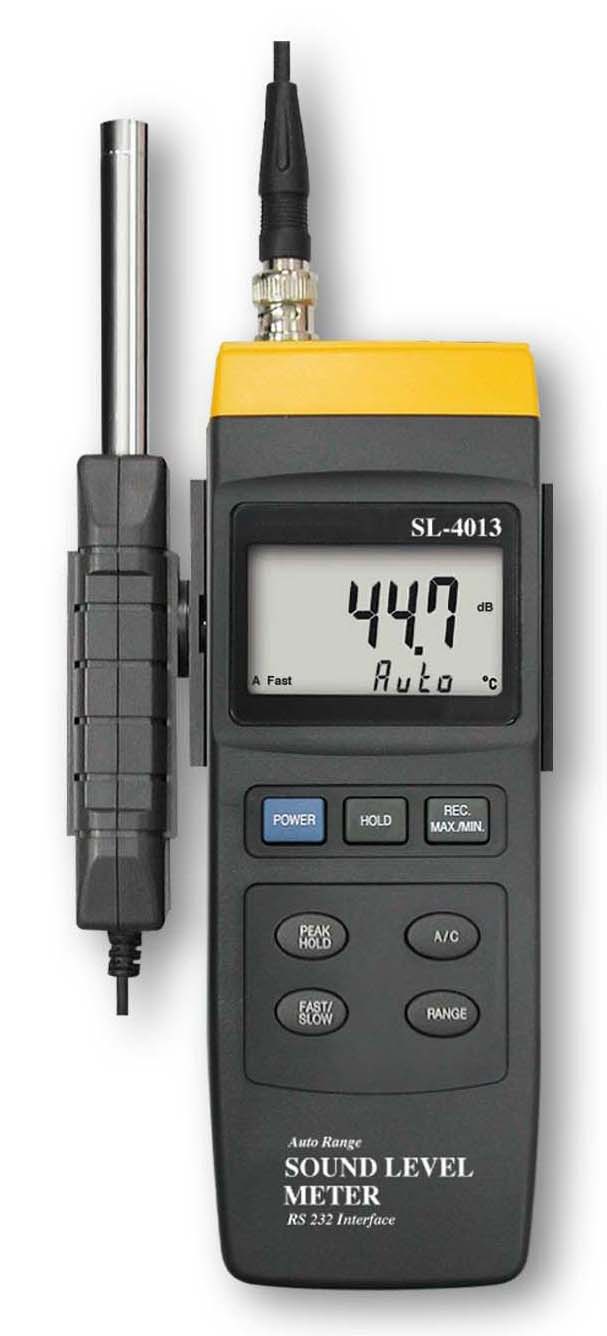

SOUND LEVEL METER
Model : SL4013
ISO-9001, CE, IEC1010
FEATURES
- Useful tool to calibrate the
Sound Level meter precisely.
- Frequency : 1000 Hz ± 5 %.
- Sound Pressure Level :
94 dB and 114 dB.
- Suitable Microphone Type :
0.5 inch or 1 inch microphone.
- Power :
2 PCs 006P DC 9V batteres.
- Large LCD display, easy to read.
- Frequency weighting networks are designed to meet IEC 61672 type 2.
- Auto range & mamual range.
- A & C weighting networks are conformity to standards.
- Fast & Slow dynamic characteristic modes.
- AC output for system expansion.
- RS232 computer interface.
- Separete sound probe, easy for remote sound measurement.
- Compact and light weight plastic housing.
- Build in adj. VR is available for easy calibration.
- Hold & Memory record ( max., min. )
- Condenser microphone for high accuracy & stability.
- Peak Hold function for stored the maximum value.
- Warning indicator for over and under load.
- LCD display for low power consumption & clear readout even in bright ambient light condition.
- Used the durable, long-lasting components, including a strong light weight ABS-plastic housing case.
GENERAL SPECIFICATIONS
| Display | 52 mm x 32 mm LCD (Liquid Crystal Display), 5 digits. |
|---|
| Function | dB (A & C frequency weighting), Time weighting(Fast, Slow), Hold, Memory ( max. & min. ), Peak hold, AC & RS232 output. |
|---|
| Measurement Range | 30 - 130 dB. |
|---|
| Resolution | 0.1 dB. |
|---|
| Accuracy (23 5 ℃) | Frequency weighting meet IEC 61672 type 2, calibrating input signal on 94 dB(31.5 Hz to 8 kHz), then the accuracy of A weighting is specified as following:
31.5 Hz - ± 3 dB, 63 Hz - ± 2 dB, 125 Hz - ± 1.5 dB, 250 Hz - ± 1.5 dB, 500 Hz - ± 1.5 dB, 1 kHz - ± 1.5 dB, 2kHz - ± 2 dB, 4 kHz - ± 3 dB, 8 kHz - ± 5 dB. |
|---|
| Frequency Weighting Network | Characteristics of A & C. |
|---|
A weighting -
The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting. |
C weighting -
The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment. |
| Frequency | 31.5 Hz to 8,000 Hz. |
|---|
| Calibrator | B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226. |
|---|
| Microphone | Electric condenser microphone. |
|---|
| Size of microphone | 1/2 inch standard size. |
|---|
| Range selector | Auto range : 30 to 130 dB. |
|---|
| Manual range : 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over & under range indicating. |
| Time Weighting (Fast & Slow) | Fast - t= 200 ms, Slow - t = 500 ms, - "Fast" range is simulated the human ear response time weighting.
"Slow" range is easy to get the average values of vibration sound level. - The "Fast" & "Slow" time weighting range are designed to IEC 61672 type 2 requirement.
|
|---|
| Output Signal | - AC output - AC 0.5 Vrms corresponding to each range step.
Output impedance - 600 ohm. - RS232 output.
|
|---|
| Out terminal | Terminal 1 : RS232 computer interface terminal.
Terminal 2 : AC output terminal. - Terminal socket size : 3.5 mm dia. phone socket.
|
|---|
| Calibration VR | Build in external calibration VR, easy to calibrate on 94 dB level by screw driver. |
|---|
| Operating Temp. | 0℃ to 50℃ ( 32 ℉ to 122 ℉ ). |
|---|
| Operating Humidity | Less than 80% RH. |
|---|
| Power Supply | 006P DC 9V battery ( Alkaline or heavy duty type ). |
|---|
| Power Consumption | Approx. DC 6mA. |
|---|
| Dimension | Main instrument:
205 x 68 x 29 mm ( 8.07x2.7x1.1 inch ). |
|---|
Sound probe:
170.5 x 24.5 x 19 mm ( 6.7x1.0x0.7 inch ). |
| Weight | 405 g/0.89 LB ( including probe ). |
|---|
| Standard Accessories | Instruction manual ................................... 1 PC.
Separate sound probe............................... 1 PC.
Probe holder............................................. 1 PC. |
|---|
| Optional | Sound Calibrator, model : SC-941 ( 94 dB ). SC-942 ( 94dB, 114 dB ).
Carrying case : CA-06
RS232 cable, Model : UPCB-02
Application software, Model : SW-U801-WIN |
|---|
* Appearance and specifications listed in this brochure are subject to change without notice.
|
