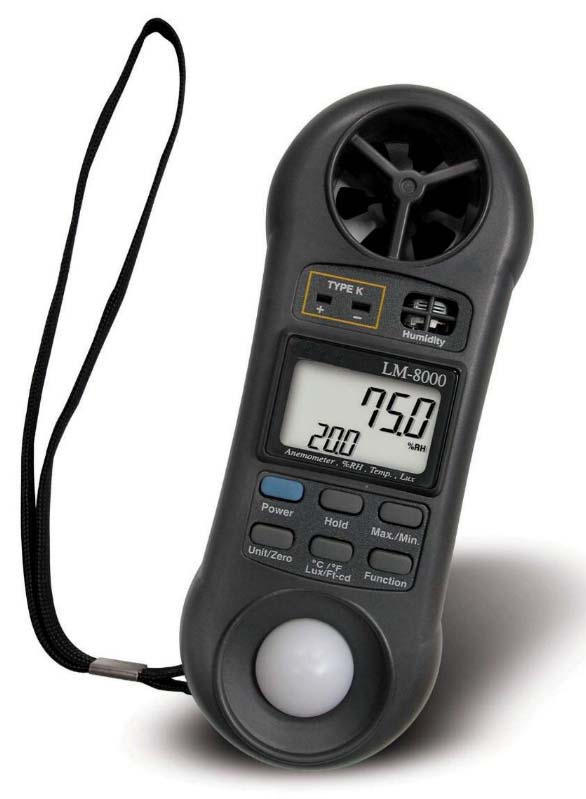

Anemometer, Humidity Light Meter, Thermometer
Model : LM8000
ISO-9001, CE, IEC1010
FEATURES
- 4 in 1 professional measuring
instrument:
Anemometer, Hygrometer,
Thermometer, and Light meter.
- Tiny bone shape with lightweight
and small size case design.
- Low-friction ball vane wheels
design provides high accuracy
at high and low air velocity.
- Exclusive photo diode and color
correction filter light sensor,
spectrum meets C.I.E. photopic.
- High precision thin-film capacitance
humidity sensor with fast response.
- Standard type K (NiCr-NiAl)
thermocouple outlet suitable for all
kinds of type K probe.
- Build in microprocessor circuit
assures excellent performance and
accuracy.
- Maximum and minimum value.
Zero button, Data hold.
GENERAL SPECIFICATIONS
Display
LCD display, 8 mm digit height.
Measurement
Anemometer, Humidity, Temperature. Light
Operating Humidity
Max. 80% RH.
Operating Temperature
0 to 50° C (32 to 122° F)
Over Input Display
Indication of "----"
Power Supply
006P DC 9V battery (Heavy duty type) km/h
Power Consumption
Approx. DC 6.2 mA
Weight
160g (battery included)
Dimension
HWD 156x60x33 mm (6.14x2.36x1.29 inch).
Standard Accessory
Instruction Manual
Optional Accessories
Carrying case.
Type K Temperature probe.
ELECTRICAL SPECIFICATION (23 ± 5 ℃)
| Measurement | Range | Resolution | Accuracy |
|---|
| Air velocity |
|---|
| ft/min | 80 to 5910 ft/min | 1 ft/min | ≦ 20 m/s : ±3% F.S.
> 20 m/s : ±4% F.S. |
| m/s | 0.4 to 30.0 m/s | 0.1 m/s |
| km/h | 1.4 to 108.0 km/h | 0.1 km/h |
| MPH | 0.9 to 67.0 mile/h | 0.1 MPH |
| knots | 0.8 to 58.3 knots | 0.1 knots |
| Temperature (thermister) | 32 to 122 ℉ | 0.1 ℉ | ± 2.5 ℉ |
| 0 to 50 ℃ | 0.1 ℃ | ± 1.2 ℃ |
| Humidity |
|---|
| % RH | 10 to 95 %RH | 0.1 %RH | < 70% RH : ± 4 %RH
≧ 70% RH : ± (4%rdg+1.2 %RH) |
| Temperature (thermister) | 32 to 122 ℉ | 0.1 ℉ | ± 2.5 ℉ |
| 0 to 50 ℃ | 0.1 ℃ | ± 1.2 ℃ |
| Light |
|---|
| Lux | 0 to 20,000 Lux | 1 Lux | ±5% rdg ±8 dgt |
| Ft-cd | 0 to 2,000 Fc | 1 Ft-cd |
| Temperature (Type K) |
|---|
Temperature
(Type K) | -148 to 2372 ℉ | 0.1 ℉ | ± (1% rdg+2) |
| -100 to 1300 ℃ | 0.1 ℃ | ± (1% rdg+1) |
Remark :
ft/min : feet per minute
MPH : miles per hour
m/s : meters per second
knots : nautical miles per hour
km/h : kilometers per hour
Ft-cd : feet candle
* Appearance and specifications listed in this brochure are subject to change without notice.
|
