| HYDRAULIC TOOLS
> NSON2S > GARAGE JACK |
| ANLA-203X |
ANLA-201R |
ANLA-303 |
 |
 |
 |
| ANLA-503 |
ANSA-103 |
ANSA-15 |
 |
 |
 |
| ANLA-3 |
|
|
 |
|
|
| Model |
Capacity |
Height |
Lift Height |
Length |
Width |
Rear Height |
Handle Length |
Air Pleasure |
Weight |
| Min |
Max |
| ton |
mm |
Mpa (kgf•cm²) |
kg |

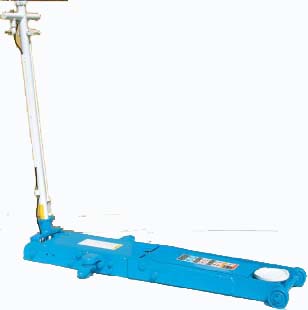

| ANLA-203X | 2 | 80 | 500 | 420 | 1098 | 370 | 88 | 1025 | 0.8~1.0 (8~10) | 70 |

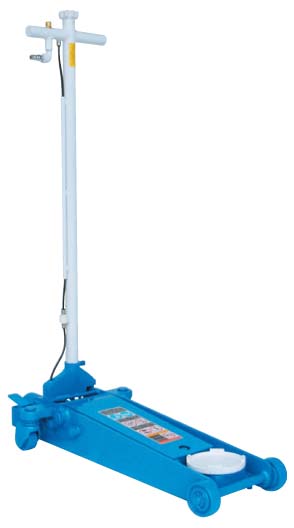

| ANLA-201R | 2 | 85 | 500 | 415 | 753 | 344 | 115 | 1060 | 0.8~1.0 (8~10) | 47 |
| ANLA-303 | 3 | 95 | 600 | 505 | 1300 | 361 | 135 | 1215 | 0.8~0.99 (8~9.9) | 85 |
| ANLA-503 | 5 | 108 | 560 | 453 | 155 | 1232 | 94 |
| ANSA-103 | 10 | 140 | 560 | 420 | 1591 | 446 | 220 | 1465 | 0.7~1.0 (7~10) | 163 |
| ANSA-15 | 15 | 160 | 640 | 480 | 1700 | 475 | 230 | 1500 | 0.8~1.0 (8~10) | 235 |

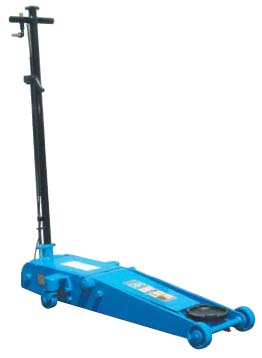

| ANLA-3 | 3 | 98 | 610 | 512 | 1035 | 398 | 145 | 1210 | 0.6~1.0 (6~10) | 85 |
|
| |
