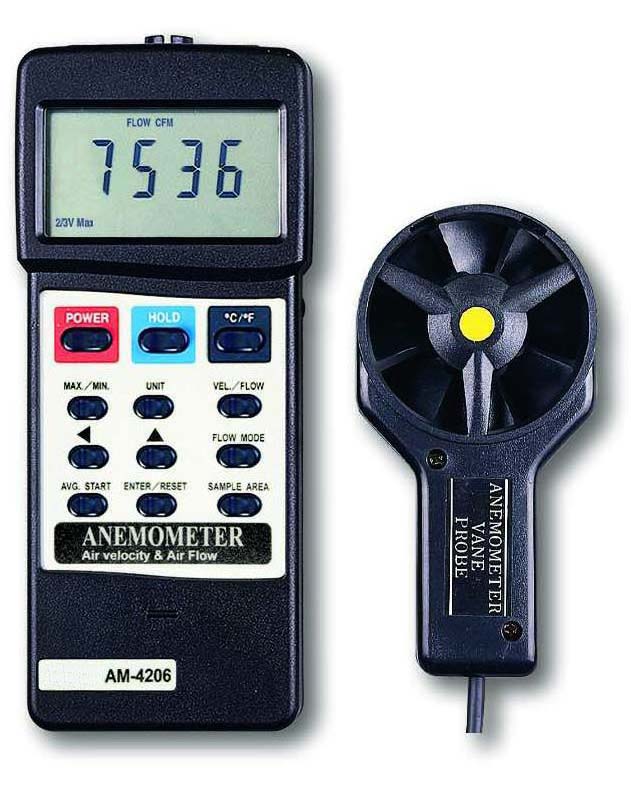

Air flow + Air Velocity , CMM, CFM ANEMOMETER
Model : AM-4206
ISO-9001, CE, IEC1010
FEATURES
- Air flow : CMM (m^3/min.) and CFM (ft^3/min.)
- Air velocity : m/s, ft/min, km/h, knots.
- Air temperature : ℃, ℉.
- 3 air flow mode : Instant, 2/3 Vmax, Average.
- Low-friction ball vane wheels is
accurate in both high & low
velocities.
- Large LCD with dual display.
- Record max. and min. reading value.
- Data hold.
- Microcomputer circuit.
- Thermistor sensor for temp. measurement, fast response time.
- RS 232 PC serial interface.
- Separate probe, easy for operation of the different measurement environment.
GENERAL SPECIFICATIONS
Circuit
Custom one-chip of microprocessor LSI circuit.
Display
- 13 mm(0.5") Super large LCD display.
- Dual function meter's display.
Measurement
Air velocity :
m/s (meters per second)
km/h (kilometers per hour)
ft/min (feet/per minute)
knots (nautical miles per hour)
mile/h(miles per hour)
Air flow :
CMM (m^3/min.),
CFM (ft^3/min.)
Temp.- ℃, ℉.
Data hold.
Memory recall
Maximum and Minimum with recall.
Sensor Structure
Air velocity & Air flow : Conventional twisted van arm and low friction ball bearing design.
Temperature : Thermistor.
Power off
Auto shut off saves battery life or manual off by push button.
Sampling Time
Approx. 0.8 sec.
Operating Humidity
Less than 80% RH.
Operating Temperature
0 ℃ to 50 ℃(32 ℉ to 122 ℉).
Data Output
RS 232 PC serial interface.
Power Supply
Alkaline or heavy duty type DC 9V battery, 006P,
MN1604 (PP3) or equivalent.
Power Current
Approx. DC 8.3 mA.
Weight
381 g/0.84 LB.
Dimension
Main instrument:
180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch).
Sensor head :
Round, 72 mm Dia.
Accessories Included
| Instruction Manual | 1 PC. |
| Sensor probe | 1 PC. |
| Carrying case | 1 PC. |
Optional Accessories
| Software (Windows version, data record & data acquisition) | SW-U101-WIN |
| RS232 cable | UPCB-01 |
ELECTRICAL SPECIFICATION (23 ± 5 ℃)
| Measurement | Range | Resolution | Accuracy |
|---|
| Air velocity |
|---|
| m/s | 0.4 - 25.0 m/s | 0.1 m/s | ± (2% + 2d) |
| km/h | 1.4 - 90.0 km/h | 0.1 km/h |
| mile/h | 0.9 - 55.9 mile/h | 0.1 mile/h |
| knots | 0.8 - 48.8 knots | 0.1 knots |
| ft/min | 80 - 4930 ft/min | 1 ft/min | ± (2% + 20 ft/min) |
| Air flow |
|---|
| CMM (m^3/min.) | 0 - 999,900 m^3/min. | 0.001 - 100 m^3/min. | 0.001 - 9,999 m^3/min. |
| CFM (ft^3/min.) | 0 - 999,900 ft^3/min. | 0.001 - 100 ft^3/min. | 0.001 - 9,999 ft^3/min. |
| Air temperature |
|---|
| Temperature(℃) | 0 to 50 ℃ | 0.1 ℃ | 0.8 ℃ |
| Temperature(℉) | 32 to 122 ℉ | 0.1 ℉ | 1.5 ℉ |
* Appearance and specifications listed in this brochure are subject to change without notice.
|
