Vibrators

This vibrator is mounted on a hopper, tank, chute, etc. in a storage, conveying, drying crushing, or dust collecting system and gives vibrations to power adhering to them to shake it down, thereby preventing them from clogging.

Recommended air pressure 0.6MPa(6kgf/cm², 85psi)

Model	Vibration per minute	Height		Mass		Bolt size		Bolt pitch		Air inlet thread	Hose size		Average air consumption
Model	min^-1	mm	in	kg	lb	mm	in	mm	in	Rc or NPT	mm	in	m³/min	ft³/min
NLV-1518AL	3650	110	4⁵/₁₆	1.6	3.5	8	-	□35	1⅜	⅛	6.3	¼	0.16	5.7
NLV-2125AL	3500	120	4¾	2.2	4.8	8	-	□43	1¹¹/₁₆	⅛	6.3	¼	0.23	8.1
NLV-2430BL	3500	130	5⅛	2.8	6.2	8	-	□50	2	⅛	6.3	¼	0.24	8.5

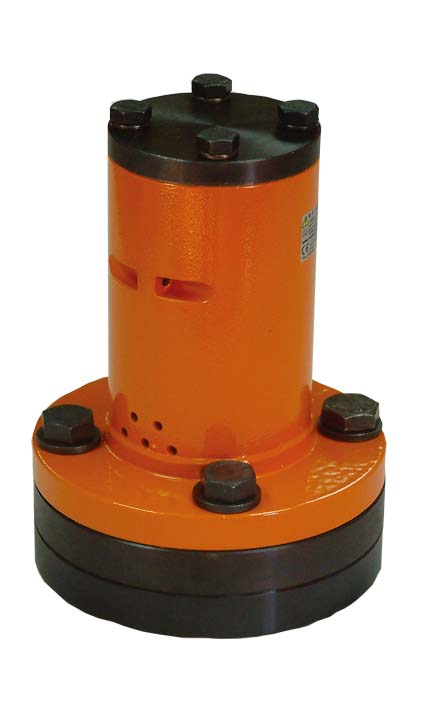

NLV-4856AL	2050	220	8¹¹/₁₆	18.6	40.9	16	-	□136	5⅜	⅜	9.5	⅜	0.66	23.3

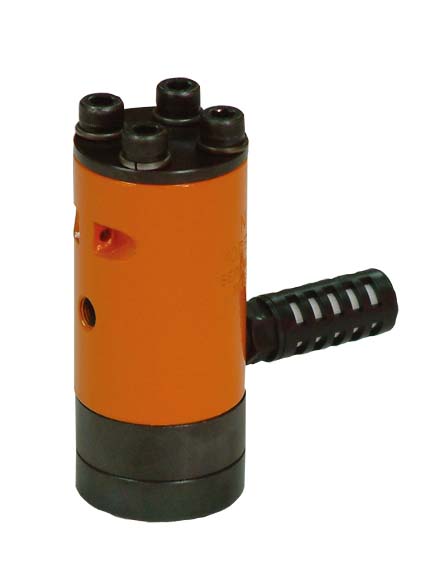

NLV-1518A	4500	110	4⁵/₁₆	1.6	3.5	8	-	□35	1⅜	⅛	6.3	¼	0.06	2.1
NLV-2125A	4350	120	4¾	2.2	4.8	8	-	□43	1¹¹/₁₆	⅛	6.3	¼	0.07	2.5
NLV-2430B	3500	130	5⅛	2.8	6.2	8	-	□50	2	⅛	6.3	¼	0.08	2.8
NLV-4856A	2100	220	8¹¹/₁₆	18.7	41.1	16	-	□136	5⅜	⅜	9.5	⅜	0.39	13.8
NLV-55	2450	196	7¹¹/₁₆	10.3	22.7	16	-	□102	4	⅜	9.5	⅜	0.51	18.0
NLV-75A	2050	276	10⅞	32.5	71.5	22	-	□149	5⅞	½	12.7	½	0.63	22.2
NRV-5223	9400	111	4⅜	2.5	5.5	12	½	130	4⅛	¼	6.3	¼	0.5	17.7
NRV-30112	18000	83	3¼	0.4	0.9	8	⁵/₁₆	-	-	⅛	6.3	¼	0.15	5.3

One-Punch Hammers

The NPK One Punch Hammer is a unique device for removing efficiently adhesive powder which is in the shape of bridges and rat holes adhered to the inside of storage tanks, hoppers and chutes by making use of strong piston impact operated by compressed air. Impact energy can be optionally selected by adjusting compressed air pressure.

Recommended air pressure 0.6MPa(6kgf/cm², 85psi)

Model	Impact energy			Mass		Average air consumption		Recommend air pressure
Model	J	kgf-m	ft-lb	kg	lb	m³/min	ft³/min	MPa	kg/cm³	psi
OPH-40	14.8~44.3	1.51~4.53	10.9~32.7	3.0	6.6	1.0	35.3	0.2~0.6	2~6	28~85

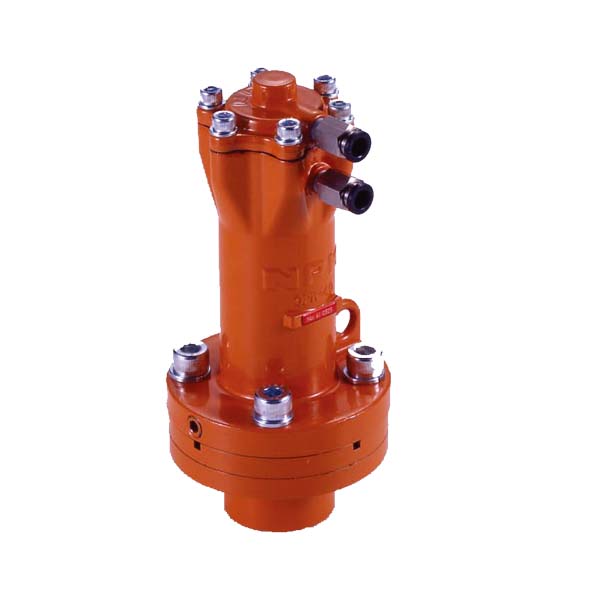

OPH-60	54~108	5.51~11.0	39.9~79.6	6.6	14.5	1.5	53.0	0.3~0.6	3~6	43~85

* Click the model number to view the model.
