BRANDS > NPK > IMPACT WRENCHES & DRIVERS

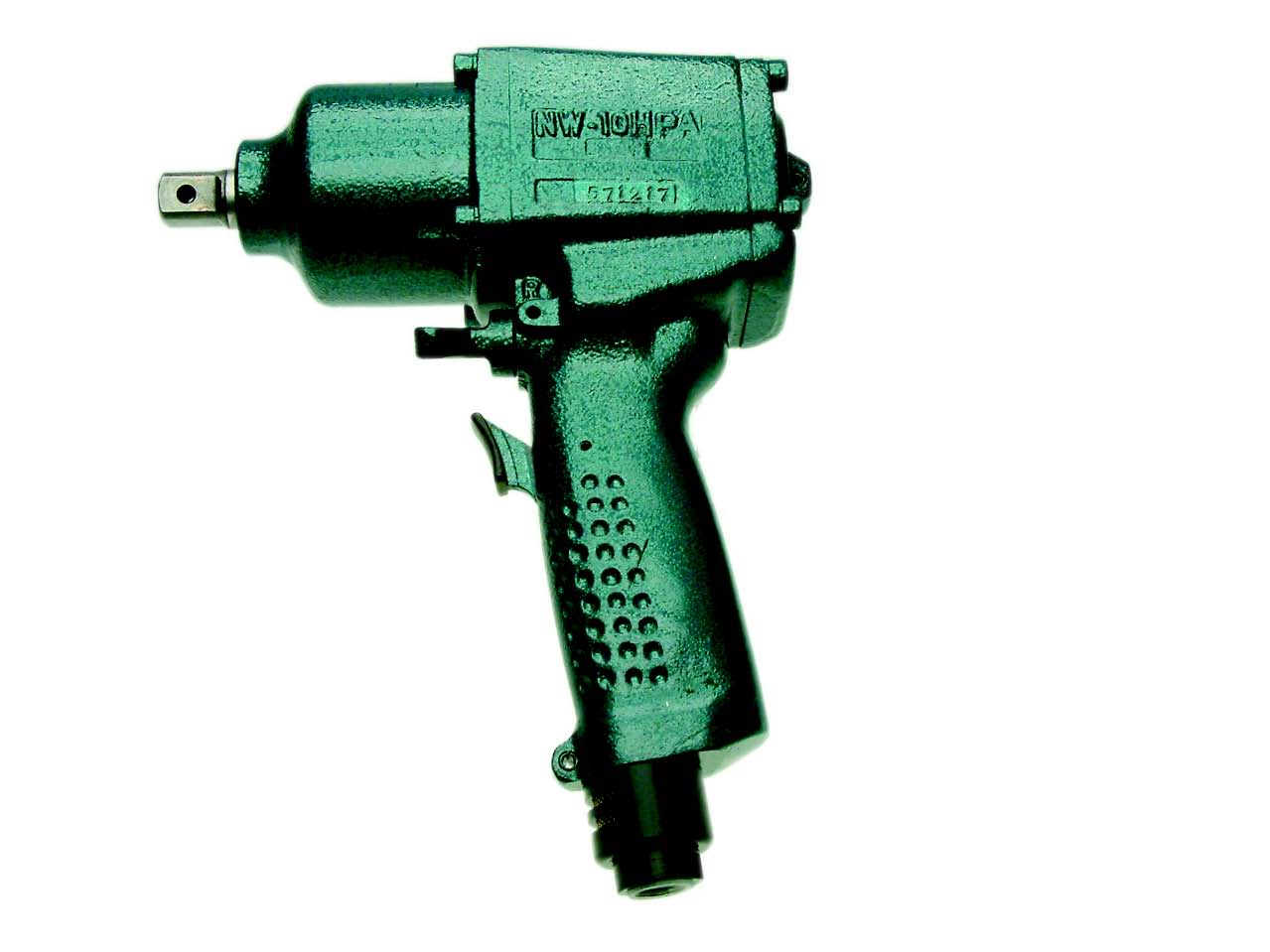

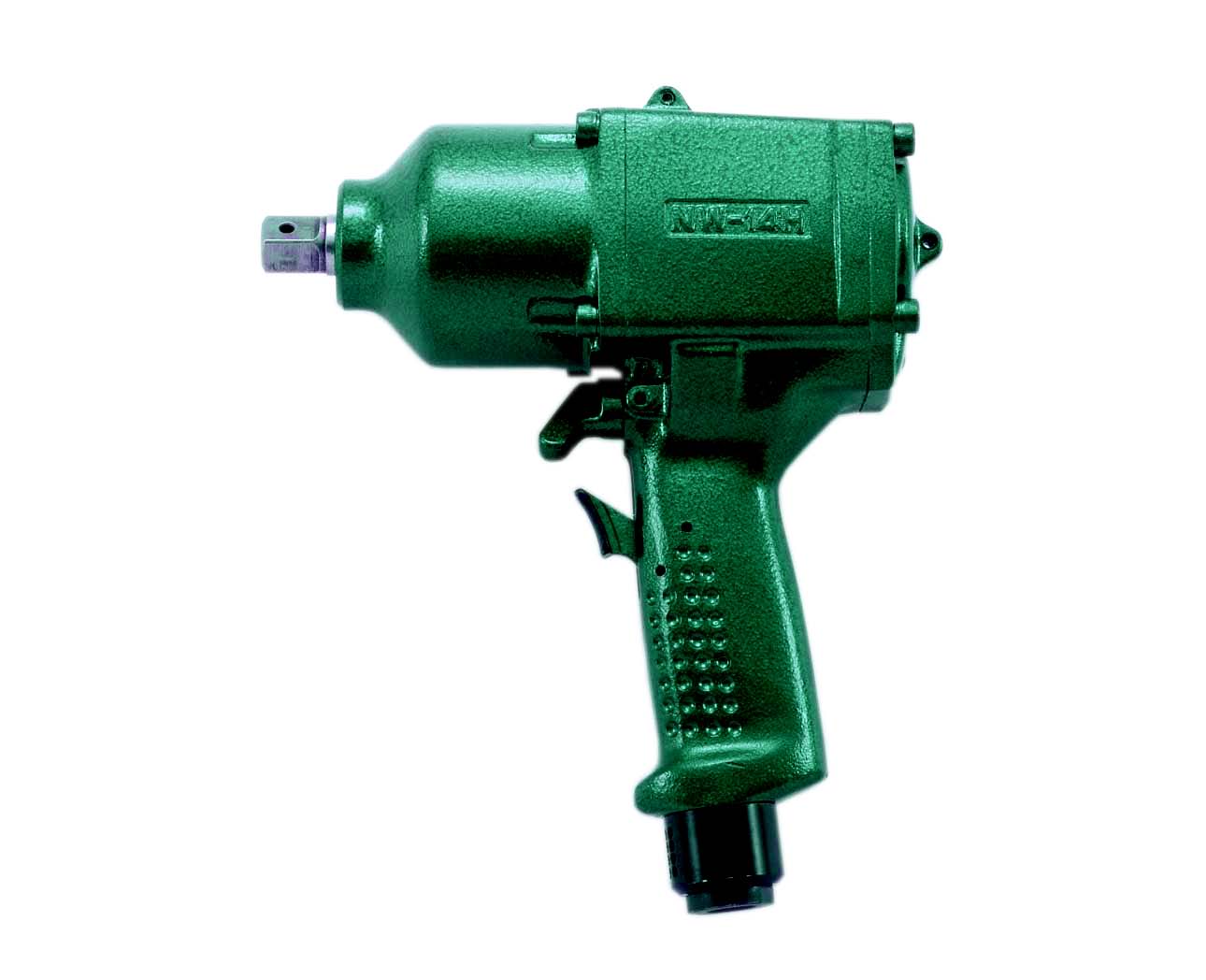

NW-10HPA	NW-1200B	NW-14H

NW-1600HA	NW-16HP	NW-2000HA

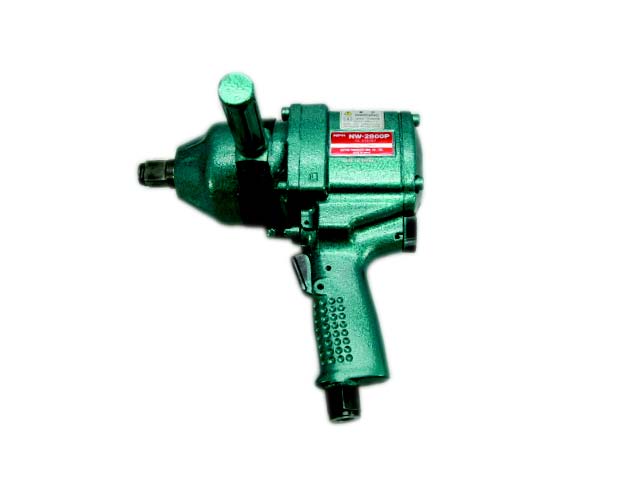

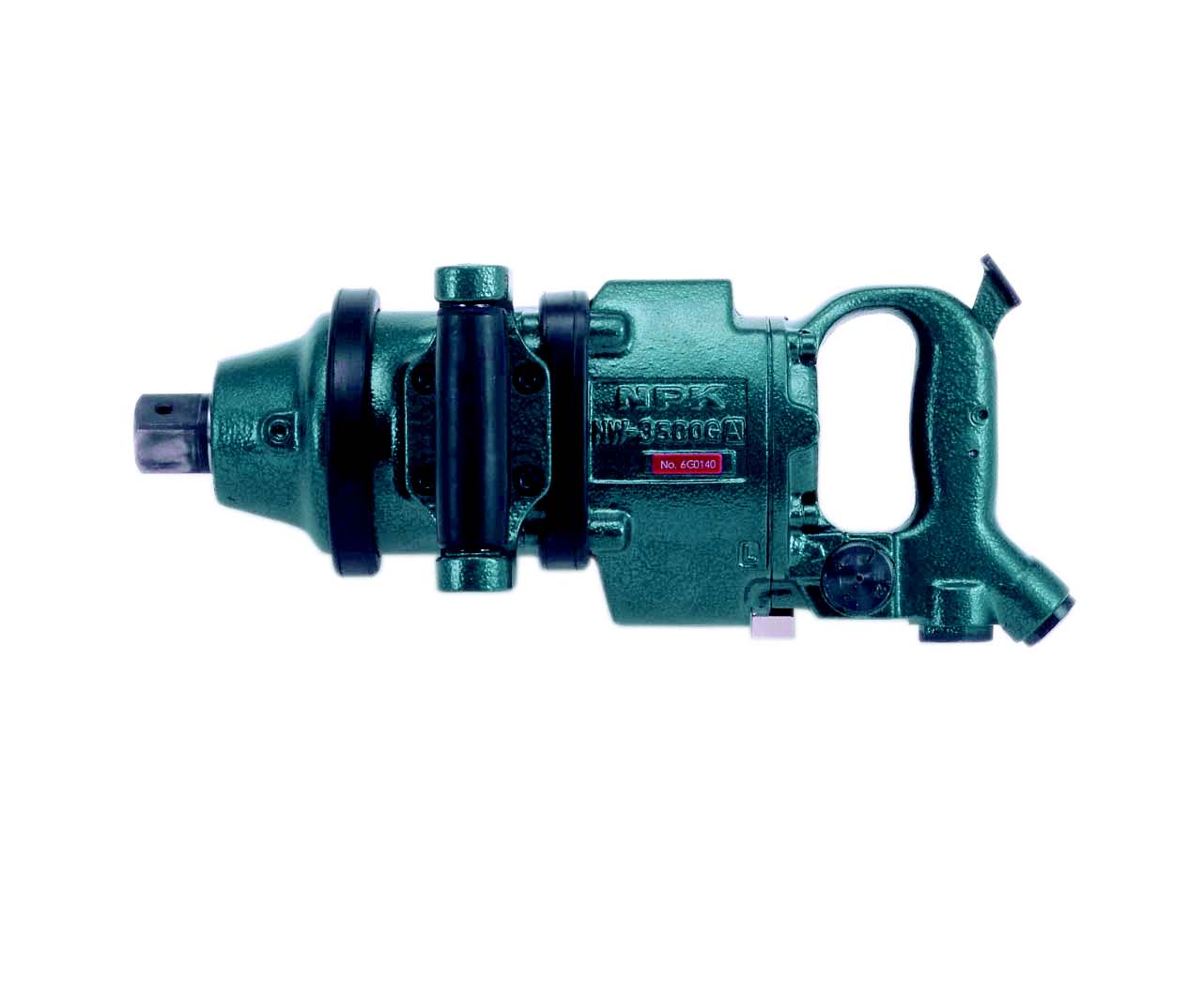

NW-2800P	NW-32LA	NW-3500GA

NW-38	NW-4300GA	NW-5000 / 5000A

9.5mm(3/8")Sq.
NW-800(S) (6 steps of power control)	SW-12(R) (Stepless power control)	NW-800S(S) (Stepless power control)

12.7mm(1/2")Sq. (4 steps of power control)
NW-1200B(R) NW-1200B(S) NW-1200B(2R) NW-1200B(2S)	NW-1600HA(R) NW-1600HA(S) NW-1600HA(2R)	NW-1600HA-AT(R) NW-1600HA-AT(S)

12.7mm(1/2")Sq. (4 steps of power control)
NW-1200B(R) NW-1200B(S) NW-1200B(2R) NW-1200B(2S)	NW-1600HA(R) NW-1600HA(S) NW-1600HA(2R)	NW-1600HA-AT(R) NW-1600HA-AT(S)

Model	Capacity (Bolt Size)		Fire Speed	Overall Length		Mass		Spindle offset		Square shank size		Air inlet thread	Horse size		Average air consumption
Model	mm	in	min^-1	mm	in	kg	lb	mm	in	mm	in	Rc or NPT	mm	in	m³/min	ft³/min
NW-16S(P)	18	¹¹/₁₆	4500	330	13	5.0	11	38	1½	19.05	¾	⅜	12.7	½	0.45	15.9

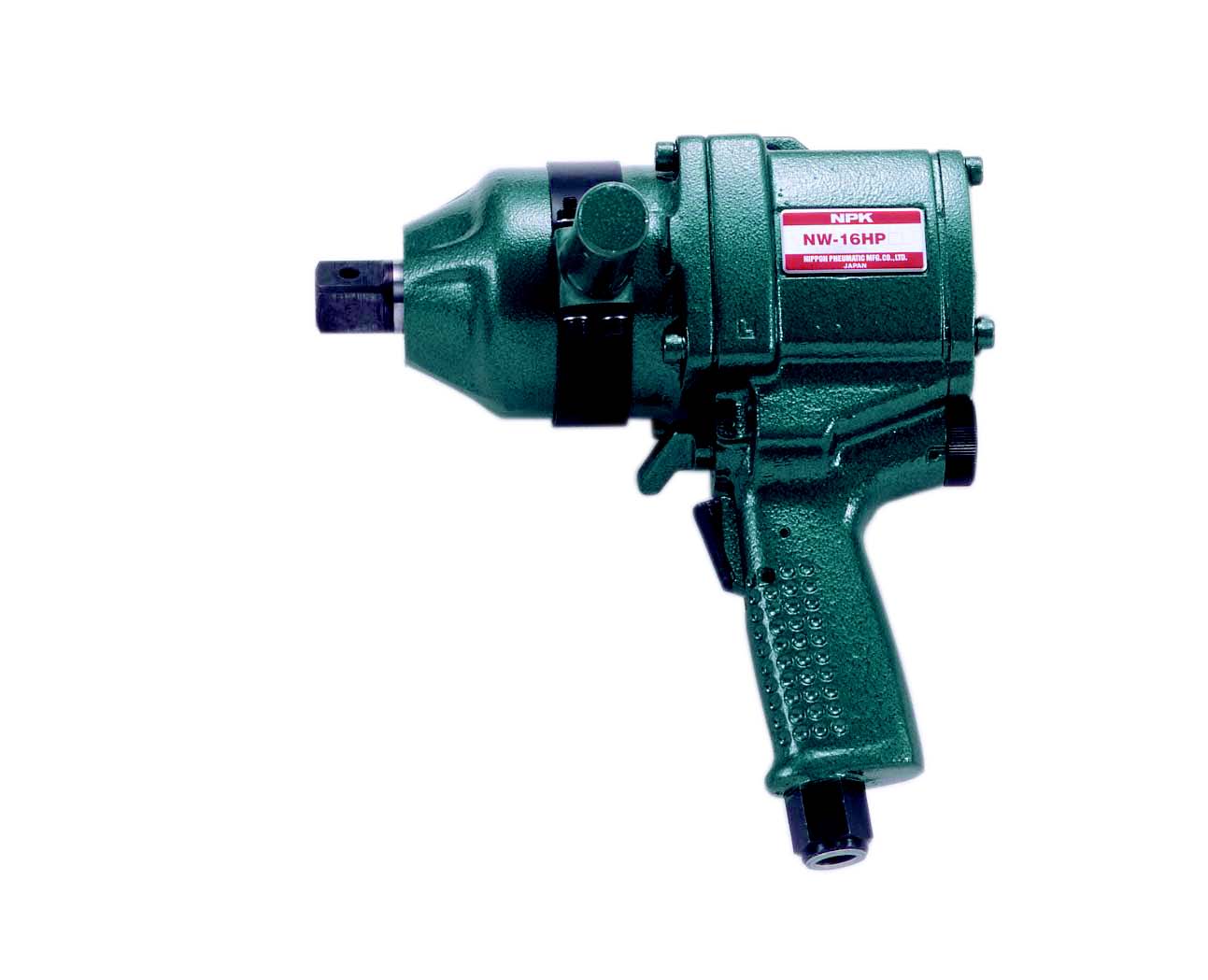

NW-16HP(P)	18	¹¹/₁₆	5000	223	8¾	5.0	11	41.5	1⅝	19.05	¾	⅜	12.7	½	0.45	15.9
NW-16HP(R)	18	¹¹/₁₆	5000	223	8¾	5.0	11	41.5	1⅝	19.05	¾	⅜	12.7	½	0.45	15.9
NW-16HS(P)	18	¹¹/₁₆	4000	318	12½	5.5	12.1	41.5	1⅝	19.05	¾	⅜	12.7	½	0.45	15.9
NW-19A(P)	20	¹³/₁₆	4500	346	13⅝	6.5	14.3	45	1¾	19.05	¾	⅜	12.7	½	0.55	19.4
NW-19A(S)	20	¹³/₁₆	4500	346	13⅝	6.5	14.3	45	1¾	19.05	¾	⅜	12.7	½	0.55	19.4
NW-22A(P)	22	⅞	4500	383	15¹/₁₆	7.4	16.3	45	1¾	19.05	¾	⅜	12.7	½	0.6	21.2
NW-32LA(P)	33	1⁵/₁₆	4000	383	15¹/₁₆	10.7	23.5	55.5	2³/₁₆	25.4	1	½	12.7	½	0.85	30.0
NW-38(P)	39	1⁹/₁₆	3000	463	18¼	15.3	33.7	62.5	2⁷/₁₆	25.4	1	½	12.7	½	0.9	31.8
NW-16HSA(P)	18	¹¹/₁₆	4000	339	13⅜	5.8	12.8	41.5	1⅝	19.05	¾	⅜	12.7	½	0.45	15.9
NW-19AA(P)	20	¹³/₁₆	4500	390	15¾	7.0	15.4	45	1¾	19.05	¾	⅜	12.7	½	0.55	19.4
NW-22AA(P)	22	⅞	4500	399	15¹¹/₁₆	8.0	17.6	45	1¾	19.05	¾	⅜	12.7	½	0.6	21.2
NW-800(S)	10	⅜	7000	128	5¹/₁₆	1.3	2.9	22.5	⅞	9.5	⅜	¼	6.3	¼	0.1	3.5
NW-800S(S)	10	⅜	8000	178	7	1.1	2.4	25	1	9.5	⅜	¼	6.3	¼	0.1	3.5
SW-12(R)	12	½	8000	124	4⅞	1.3	2.9	27	¹¹/₁₆	9.5	⅜	¼	6.3	¼	0.1	3.5
NW-1200B(R)	14	⁹/₁₆	7000	174	6⅞	1.8	4.0	28	1⅛	12.7	½	¼	6.3	¼	0.1	3.5
NW-1200B(S)	14	⁹/₁₆	7000	174	6⅞	1.8	4.0	28	1⅛	12.7	½	¼	6.3	¼	0.1	3.5

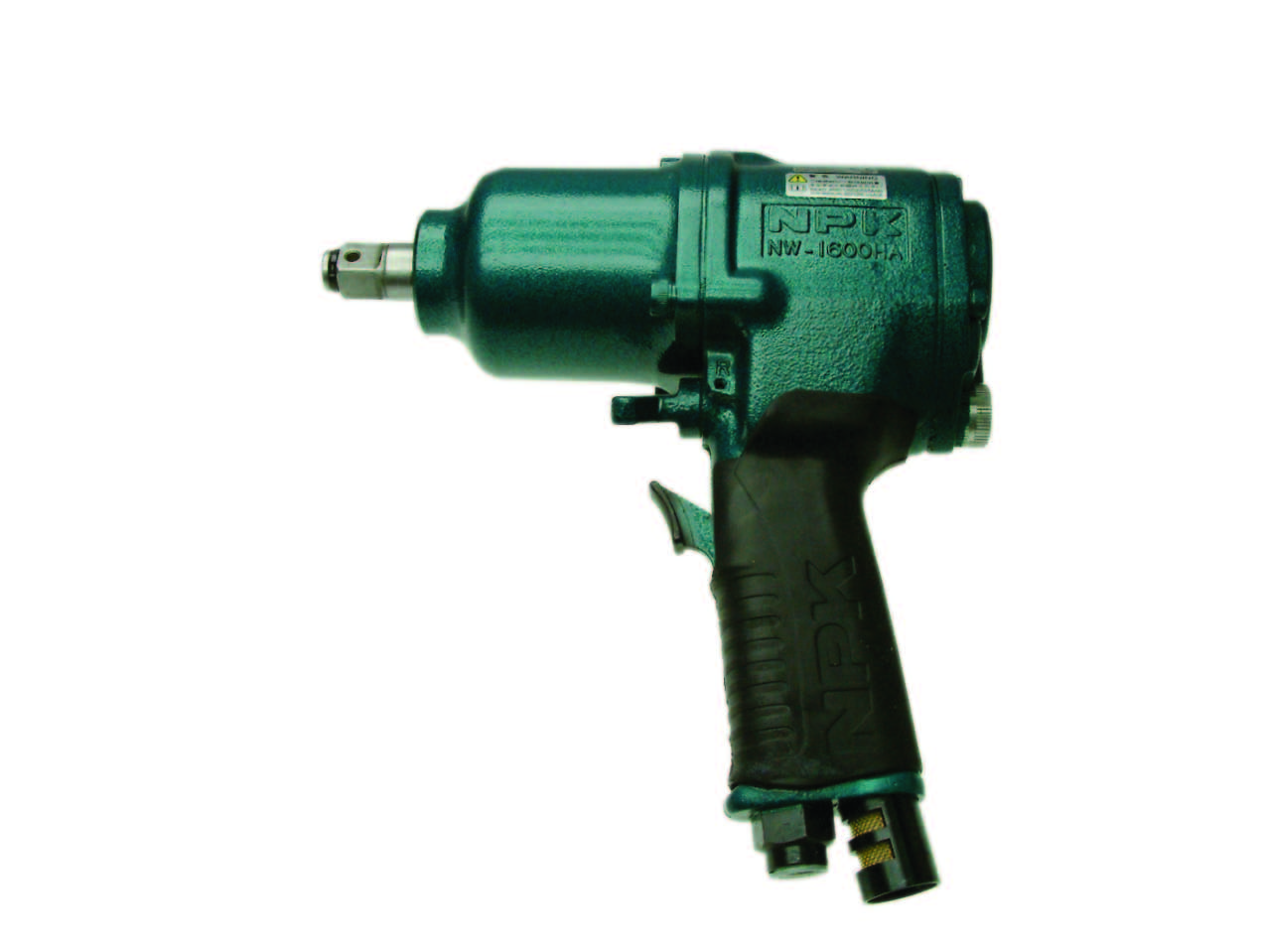

NW-1600HA(R)	16	⅝	5000	195	7¹¹/₁₆	2.5	5.5	31.8	1¼	12.7	½	¼	6.3	¼	0.15	5.3
NW-1600HA(S)	16	⅝	5000	195	7¹¹/₁₆	2.5	5.5	31.8	1¼	12.7	½	¼	6.3	¼	0.15	5.3
NW-1600HA-AT(R)	16	⅝	5000	194	7⅝	2.5	5.5	32.5	1¼	12.7	½	¼	6.3	¼	0.15	5.3
NW-1600HA-AT(S)	16	⅝	5000	194	7⅝	2.5	5.5	32.5	1¼	12.7	½	¼	6.3	¼	0.15	5.3
NW-1600SA(R)	14	⁹/₁₆	6500	165	6½	1.6	3.5	26	1	12.7	½	¼	6.3	¼	0.15	5.3
NW-1200B(2R)	14	⁹/₁₆	7000	224	8¹³/₁₆	2.1	4.6	28	1⅛	12.7	½	¼	6.3	¼	0.1	3.5
NW-1200B(2S)	14	⁹/₁₆	7000	224	8¹³/₁₆	2.1	4.6	28	1⅛	12.7	½	¼	6.3	¼	0.1	3.5
NW-1600HA(2R)	16	⅝	5000	244	9⅝	2.6	5.7	31.8	1¼	12.7	½	¼	6.3	¼	0.15	5.3

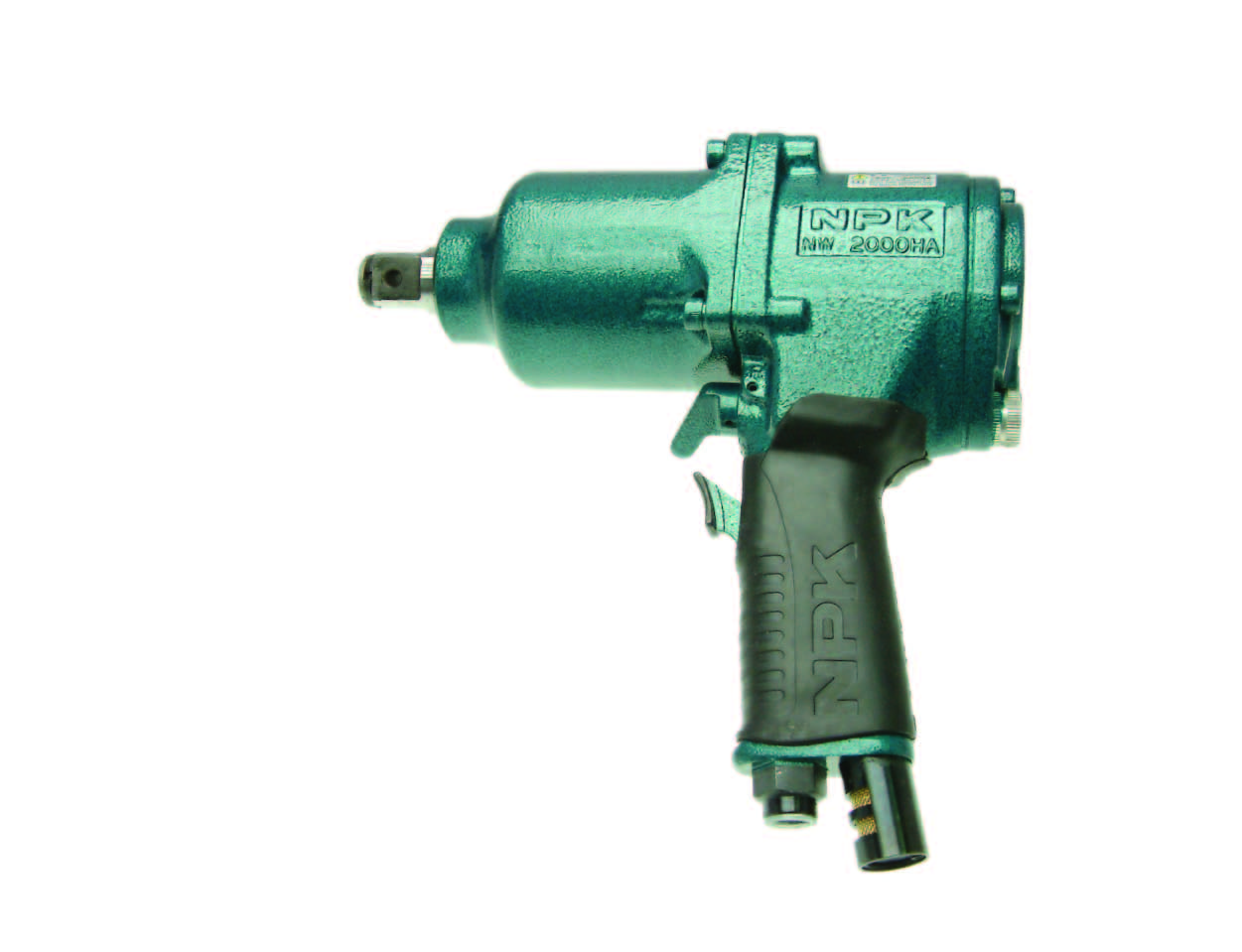

NW-2000HA(R)	20	¹³/₁₆	4500	230	9¹/₁₆	3.8	8.4	38	1½	19.05	¾	¼	9.5	⅜	0.2	7.1
NW-2000HA(S)	20	¹³/₁₆	4500	230	9¹/₁₆	3.8	8.4	38	1½	19.05	¾	¼	9.5	⅜	0.2	7.1
NW-2000HA(4R)	20	¹³/₁₆	4500	330	13	4.2	9.2	38	1½	19.05	¾	¼	9.5	⅜	0.2	7.1

Model	Capacity (Bolt size)	Torque adjustment range(Reference)		Free speed	Overall length	Mass	Spindle offset	Square shank size	Air inlet thread	Hose size	Average air consumption
	Capacity (Bolt size)	Hard joint	Soft joint	Free speed	Overall length	Mass	Spindle offset	Square shank size	Air inlet thread	Hose size	Average air consumption
	mm	N.m	N.m	min^-1	mm	kg	mm	mm	Rc	mm	m³/min
NPP-06	6	22~37	-	6,500	146	0.85	22.5	9.5	1/4	6.3	0.3
NPP-08	8	35~50	-	6,500	153	0.89	22.5	9.5	1/4	6.3	0.3
NPW-450A-000	6	25~42	-	6,500	154	0.93	23	9.5	1/4	6.3	0.3
NPW-550A-000	8	27~52	-	6,500	159	1.0	23	9.5	1/4	9.5	0.35
NPW-650A-000	8~10	44~64	-	5,500	172	1.06	23	9.5	1/4	9.5	0.45
NPW-800B-000	10	64~93	-	5,300	178	1.45	26	9.5	1/4	9.5	0.5
NPW-1000A-000	12	70~110	-	5,300	192	1.9	32	12.7	1/4	9.5	0.55
NPW-1200A-000	12~14	90~137	-	4,200	195	2.3	35	12.7	1/4	9.5	0.6
NPW-1400A-000	14	118~167	-	3,500	218	2.8	36	12.7	1/4	9.5	0.8
NPW-1600A-000	16	129~210	-	3,000	240	3.6	40	19.05	1/4	9.5	0.9
NPW-450EA-000	6	21~34	-	6,000	242	0.88	23	9.5	1/4	6.3	0.23
NPR-05	5	10~15	7~11	4,000	165	1.0	23	9.5	1/4	6.3	0.35
NPR-06	6	14~25	10~20	5,000	171	1.1	23	9.5	1/4	6.3	0.35
NPR-07	6~8	24~35	19~30	5,000	171	1.1	23	9.5	1/4	6.3	0.35
NPW-450A-T00	6	20~29	10~20	6,000	191	1.3	24	9.5	1/4	6.3	0.35
NPW-550A-T00	6~8	26~40	15~27	6,000	191	1.3	24	9.5	1/4	6.3	0.35
NPW-650A-T00	8~10	40~54	25~44	5,800	206	1.5	25	9.5	1/4	9.5	0.45
NPW-800B-T00	10	57~74	34~61	5,500	212	1.7	26	9.5	1/4	9.5	0.5
