BRANDS > NPK > GRINDERS

*** Click the model number to view the model. ***

Straight Grinders

A full range of straight grinders is provided.

Recommended air pressure 0.6MPa(6kgf/cm², 85psi)

Model	Capacity (Wheel size)		Collet size	Max.free speed	Overall length		Mass		Max. output		Air inlet thread	Hose size		Average air consumption
Model	mm	in	mm/in	min^-1	mm	in	kg	lb	kw	ps	Rc or NPT	mm	in	m³/min	ft³/min

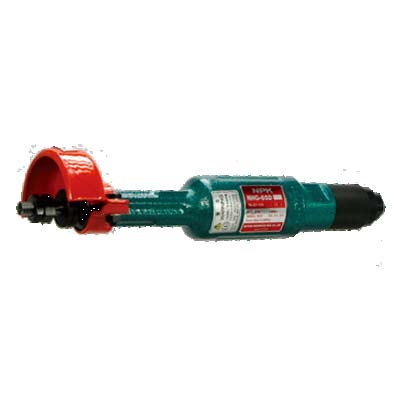

NHG-65D	65×13×9.5	2⁹/₁₆×½×⅜	-	14600	310	12³/₁₆	1.3	2.9	0.58	0.79	¼	9.5	⅜	0.55	19.4

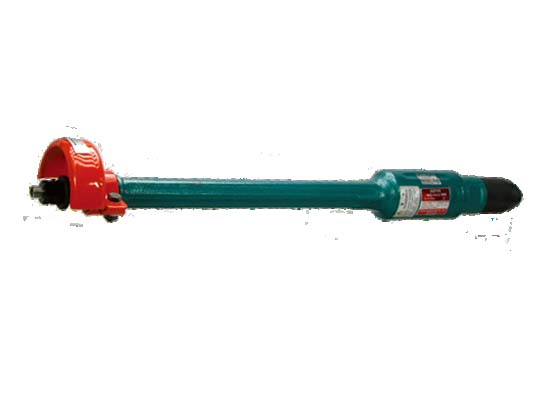

NHG-65LD	65×13×9.5	2⁹/₁₆×½×⅜	-	14600	510	20¹/₁₆	1.6	3.5	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65LD-75	65×13×9.5	2⁹/₁₆×½×⅜	6	14600	756	29¾	2.2	4.8	0.58	0.79	¼	9.5	⅜	0.55	19.4

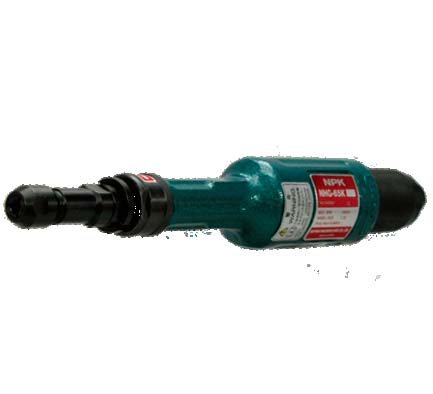

NHG-65K-03	32	1¼	3mm	18000	311	12¼	1.3	2.9	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65K-06	32	1¼	6mm	18000	311	12¼	1.3	2.9	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65K-10	32	1¼	⅛"	18000	311	12¼	1.3	2.9	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65K-20	32	1¼	¼"	18000	311	12¼	1.3	2.9	0.58	0.79	¼	9.5	⅜	0.55	19.4

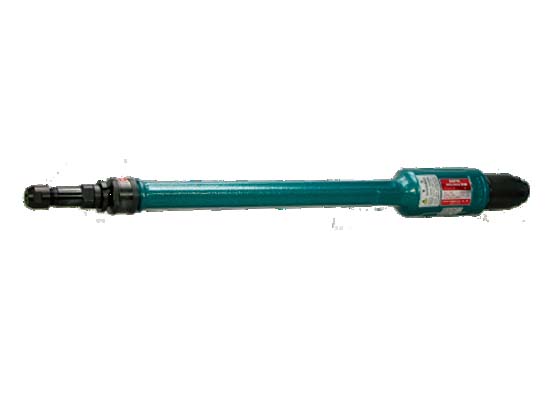

NHG-65LK-03	32	1¼	3mm	18000	511	20⅛	1.6	3.5	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65LK-06	32	1¼	6mm	18000	511	20⅛	1.6	3.5	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65LK-10	32	1¼	⅛"	18000	511	20⅛	1.6	3.5	0.58	0.79	¼	9.5	⅜	0.55	19.4
NHG-65LK-20	32	1¼	¼"	18000	511	20⅛	1.6	3.5	0.58	0.79	¼	9.5	⅜	0.55	19.4

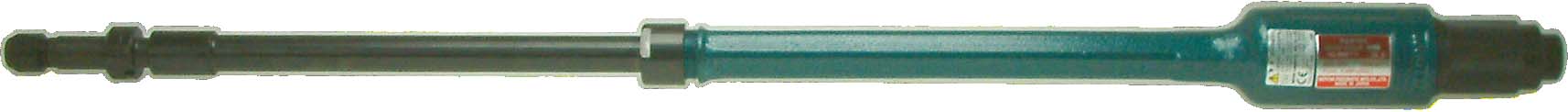

NHG-65LK-75	32	1¼	6mm	18000	756	29¾	2.2	4.8	0.58	0.79	¼	9.5	⅜	0.55	19.4

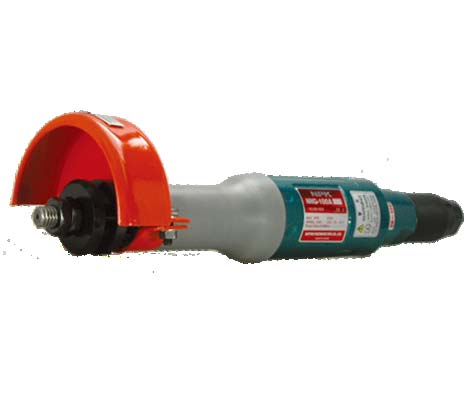

NHG-100A	100×19×12.7	4×¾×½	-	9500	366	14⁵/₁₆	2.3	5.1	0.88	1.2	⅜	12.7	½	0.65	23.0

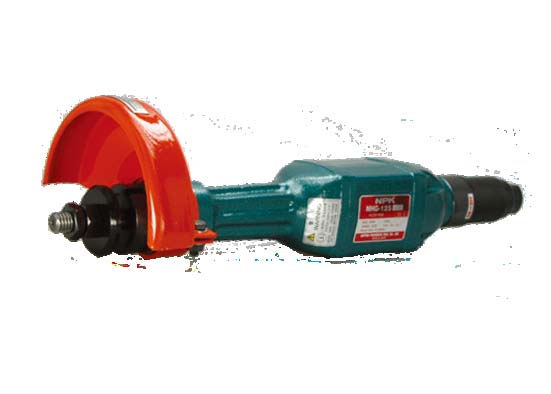

NHG-125	125×19×12.7	5×¾×½	-	7500	405	15¹⁵/₁₆	3.2	7.0	1.04	1.42	⅜	12.7	½	0.9	31.8

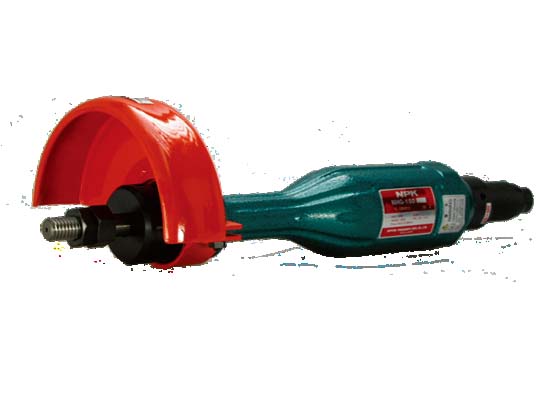

NHG-150	150×25×15.9	6×1×⅝	-	6200	440	17³/₁₆	4.6	10.1	1.32	1.8	⅜	12.7	½	1.1	38.8

Angle Grinders

Model	Capacity (Wheel size)		Max.free speed	Overall length		Mass		Max. output		Air inlet thread	Hose size		Average air consumption
Model	mm	in	mm^-1	mm	in	kg	lb	kw	ps	Rc or NPT	mm	in	m³/min	ft³/min

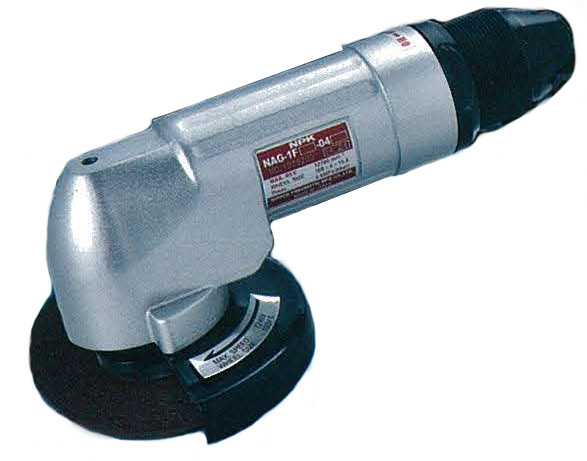

NAG-1F	100×6×15.9	4×¼×9/₁₆	12700	190	7½	1.6	3.5	0.87	1.19	¼	9.5	⅜	0.68	24.0

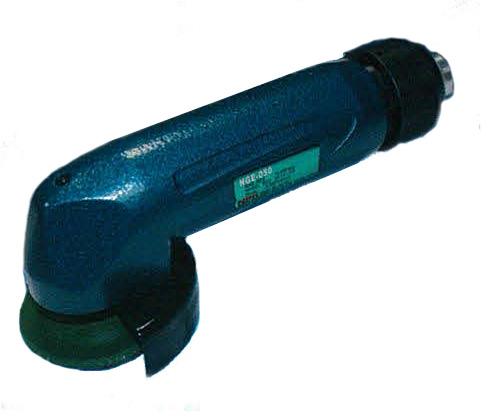

NGE-050	50×9.6×4	2×⅜×⁵/32	15000	155	6.1	0.7	1.54	0.41	0.56	¼	9.5	⅜	0.48	17.0

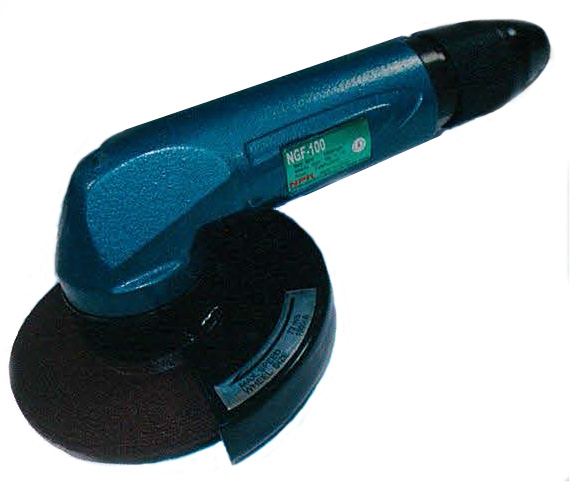

NGF-100	100×6×15	4×¼×⁹/16	13000	192	7.56	0.95	2.09	0.65	0.88	¼	9.5	⅜	0.5	17.7

Die Grinders

Model	Capacity (Wheel size)		Collet size	Max.free speed	Overall length		Mass		Max. output		Air inlet thread	Hose size		Average air consumption
Model	mm	in	mm	min^-1	mm	in	kg	lb	kw	ps	RC or NPT	mm	in	m³/min	ft³/min

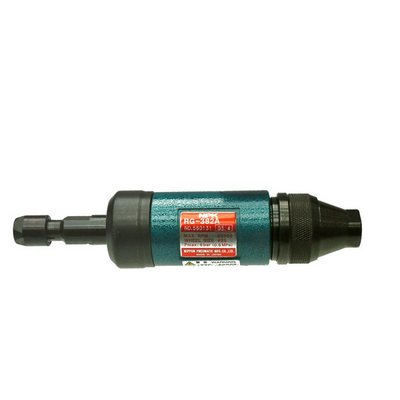

RG-382A	φ25	1	6	22000	184	7¼	0.5	1.1	0.42	0.57	¼	9.5	⅜	0.5	17.7

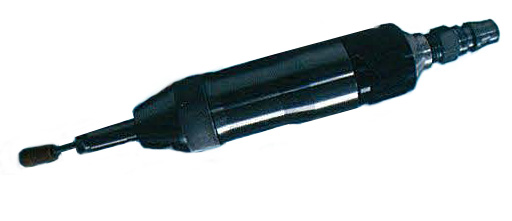

NGX-025	φ22	⅞	3	28000	152	5.98	0.45	1.0	0.23	0.3	¼	6.3	¼	0.3	10.6

The products shown above are only a small part of series,
please contact us for your enquiry.
