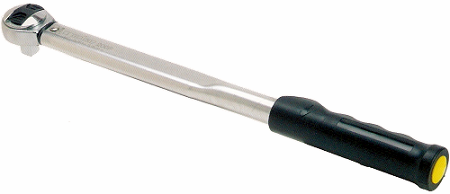

Ratchet Torque Wrench Production 'P' Type - Automotive Ratchet

Model	Square Drive	Part No.	Range		Ratchet Diameter	Engagements Per revolution	Length	Weight
	in		N.m	Ibf.ft	mm		mm	Kg
60 'P'	3/8	11164	8-60	5-45	31	72	286	0.6
60 'P'	1/2	11171	8-60	5-45	31	72	286	0.6
100 'P'	3/8	11138	10-100	8-80	31	72	326	0.69
100 'P'	1/2	11139	10-100	8-80	31	72	326	0.69
200 'P'	1/2	11140	20-200	15-150	41	72	423	1.0

Ratchet Torque Wrench Production 'P' Type - Industrial Ratchet

Model	Square Drive	Part No.	Range		Ratchet Diameter	Engagements Per revolution	Length	Weight
	in		N.m	Ibf.ft	mm		mm	Kg
60 'P'	3/8	13054	8-60	5-45	35	72	286	0.62
60 'P'	1/2	13052	8-60	5-45	40	72	286	0.69
100 'P'	3/8	13053	10-100	8-80	35	72	326	0.68
100 'P'	1/2	13054	10-100	8-80	40	72	326	0.74
200 'P'	1/2	13055	20-200	15-150	42	72	423	0.96
300 'P'	1/2	13057	30-300	22-220	49	60	663	1.45
400 'P'	3/4	13056	40-400	30-300	49	60	663	2.04
