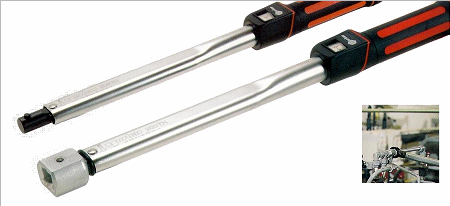

TORQUE WRENCHES, Norbar - Ansontools.com

TORQUE WRENCHES > NORBAR TOOLS > TORQUE WRENCHES > TORQUE HANDLES

Adjustable - 16mm Spigot

Model	Part No.	Range		Length	Weight
Model	Part No.	N.m	Ibf.ft	mm	Kg
60 TH	13018	8 - 60	5 - 45	301	0.55
100 TH	13019	20 - 100	15 - 80	340	0.6
200 TH	13020	40 - 200	30 - 150	423	0.78
300 TH	13021	60 - 300	45 - 220	548	1.13

Female Ended Adjustable - 9 x 12mm and 14 x 18mm

Model	Part No.		Range		Length	Weight
Model	9 x 12	14 x 18	N.m	Ibf.ft	mm	Kg
60 TH	13022	-	8 - 60	5 - 45	300	0.55
100 TH	13023	-	20 - 100	15 - 80	340	0.6
200 TH	13024	13025	40 - 200	30 - 150	421 / 431	0.78
300 TH	-	13026	60 - 300	45 - 220	546.5	1.13
400 TH	-	13028	80 - 400	60 - 300	658	1.78

Production 'P' Type - 16mm Spigot

Model	Part No.	Range		Length	Weight
Model	Part No.	N.m	Ibf.ft	mm	Kg
60 TH	11167	8 - 60	5 - 45	280	0.55
100 TH	11143	20 - 100	15 - 80	320	0.6
200 TH	11144	40 - 200	30 - 150	402	0.78
300 TH	11117	60 - 300	45 - 220	640	1.13

Female Ended Production 'P' Type - 9 x 12mm and 14 x 18mm

Model	Part No.		Range		Length	Weight
Model	9 x 12	14 x 18	N.m	Ibf.ft	mm	Kg
60 TH	11170	-	8 - 60	5 - 45	280	0.55
100 TH	11150	-	20 - 100	8 - 80	319	0.6
200 TH	11151	11152	40 - 200	15 - 150	400 / 410	0.78
300 TH	-	11153	60 - 300	22 - 220	528	1.13
400 TH	-	13068	80 - 400	30 - 300	640	1.78
