AIR TOOLS > MATADOR > IMPACT WRENCHES |

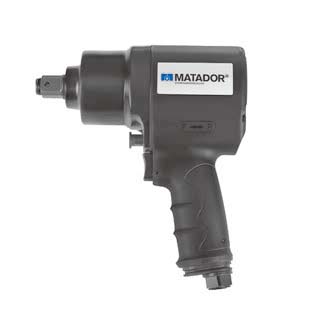

Impact Wrench 12.5mm (½")
- High-performance impact wrench with
excellent technical features
- Enormous 1.490 N·m max. loosening torque
- Only 83 dB(A) sound pressure level
- Only 1.9 kg in weight (composite housing)
- Cold-insulated handle
- Extremely low vibration, ideal for continuous operation
- With high-performance twin hammer clutch mechanism with 6-blades rotor
- Including coupler

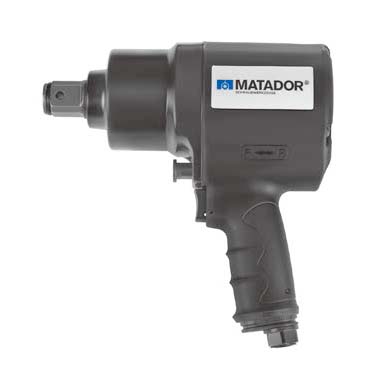

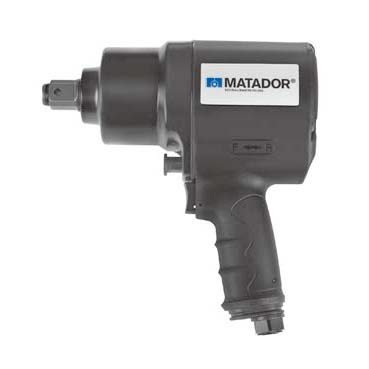

Impact Wrench 20 mm / 25 mm (¾" / 1")
- High-performance impact wrench with excellent technical features
- Enormous 2.645 N·m max. loosening torque
- Only 90 dB(A) sound pressure level
- Only 3.4 and 3.5 kg in weight (composite housing)
- With twin hammer clutch mechanism
- Cold-insulated handle
- Extremely low vibration, ideal for continuous operation
- With high-performance twin hammer clutch mechanism with 6-blades rotor
- Including coupler

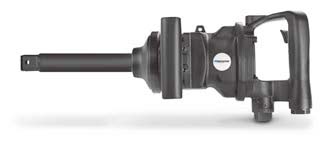

Impact Wrench 25 mm (1"), FatCat
- High Impact Wrench with outstanding technical properties
- With twin hammer impact mechanism with 6-vane motor
- Enormous 3.389 N·m maximum release torque
- Only 96 dB (A) sound pressure level
- Only 6.5 kg weight (composite housing)
- Includes spindle 185 mm (7.3“)
- Complete with side handle with mounting kit
- Includes coupler plug
| | 12.5 mm (½") | 20/25mm (¾"/1") | 25mm (1"), FatCat |
Maximum loosening torque | N·m ft·lbs | 1490 1100 | 2645 1950 | 3389 2500 |
Maximum torque | N·m ft·lbs | 813 600 | 1898 1400 | 2441 1800 |
Recommended torque | N·m ft·lbs | 68 - 542 50 - 400 | 271 - 1627 200 - 1200 | 271 - 2033 200 - 1500 |
Sound pressure level | dB(A) | 83 | 90 | 96 |
Idle speed | U/min rpm | 7000 | 5500 | 6000 |
Air consumption | l/min CFM | 113 4 | 198 7 | 282 10 |
Operating pressure | bar psi | 6.3 90 | 6.3 90 | 6.3 90 |
Air inlet thread | IG mm NPT " | 11.8 ¼ | 15.25 ⅜ | 19 ½ |
Recommended hose size | mm " | 10 ⅜ | 13 ½ | 13 |
■ | mm " | 12.5 ½ | 20 ¾ | 25 1 | 25 1 |
Length | mm | 183 | 215 | 223 | 324 |
Weight | g | 1900 | 3300 | 3400 | 6500 |
|
|
|
