Hydraulic Torque Wrench 60-27.000 N.m

Compact, easy to handle, durable

LÖSOMAT Hydraulic Torque Wrenches are flexible and durable.

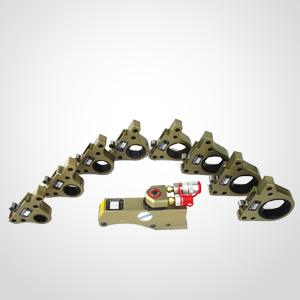

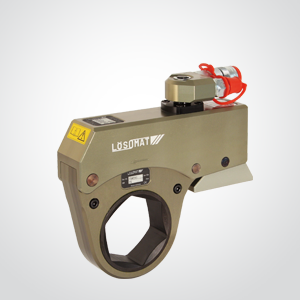

Both the Hydraulic Torque Wrenches and the Cassette Torque Wrenches are compatible with a wide range of hydraulic units. They best perform however, when paired with the matching LÖSOMAT Hydraulic Units. The Hydraulic Torque Wrenches are available as square drive and Cassette Torque Wrenches.

Technical Data

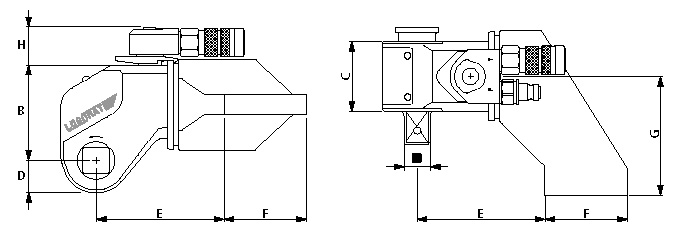

Type	N·m	lbf·ft	■	B	D	E	F
Type	min/max^*1	min/max^*1	■	mm	mm	mm	mm
LDH-12V	60-1200	45-880	¾"	62	19	-/88	-/48
LDH-24V	120-2350	90-1730	¾"	72	24	59/109	41/58
LDH-48V	230-4800	170-3500	1"	92	31	69/124	56/80
LDH-75V	400-7560	290-5570	1½"	107	36	74/134	94/93
LDH-100V	500-10000	370-7300	1½"	115	39	85/150	71/99
LDH-170V	800-16000	590-11800	1½"	134	48	93/163	77/108
LDH-270V	1300-27000	960-19900	2½"	164	59	121/206	113/113

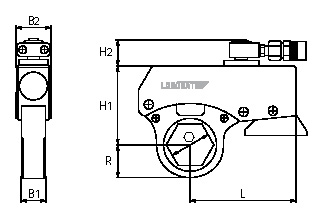

Type	N·m	lbf·ft	-	-	H1	B1	R
Type	min/max^*1	min/max^*1	mm	"	mm	mm	mm
LDK-3	160-3300	120-2400	32-60	11/4"-23/8"	91/103	28	28-48
LDK-6	350-6200	260-4500	41-80	15/8"-31/8"	115/130	35	34-59
LDK-12	550-12500	410-9200	55-100	23/16"-37/8"	141/156	47	46-73
LDK-24	1200-24000	880-17700	80-130	31/8-5"	182/212	56	62-96

*1 Maximum torque at 800 bars.
