| 9012-1 SPC/2 |
9013 Square drive ¾" |
9013 MG Square drive ¾" |
 |
 |
 |

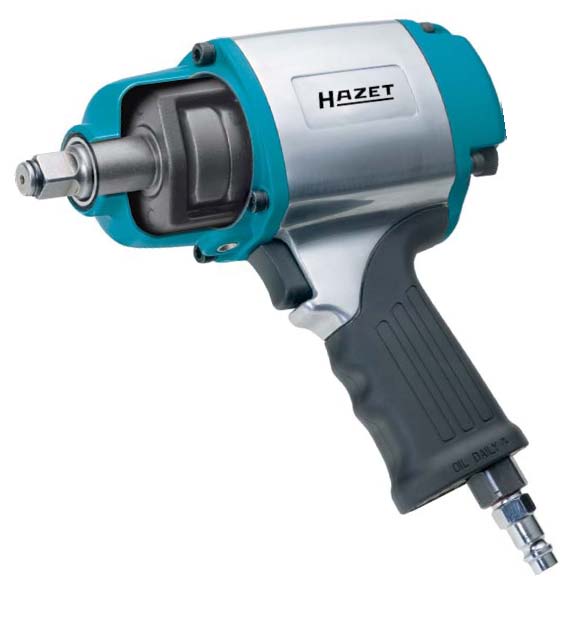

Impact Wrench 9012-1 SPC/2
- Max. loosening torque: 670 Nm
- Working pressure: 6.3 bar
- Cold insulated handle
- Coupler plug, nominal size 7.2 included
- Exhaust air is guided through the handle downwards
- Reduced vibrations
- Multiple power settings in forward and reverse
- Easy handling
- Powerful twin hammer mechanism
- Recommended torque: 550 Nm
- Air consumption: 113 l/min
- Sound pressure level: Lp A 88 dB(A)
- Air inlet thread: 6.3 mm (¼")
- Screw size: M 16

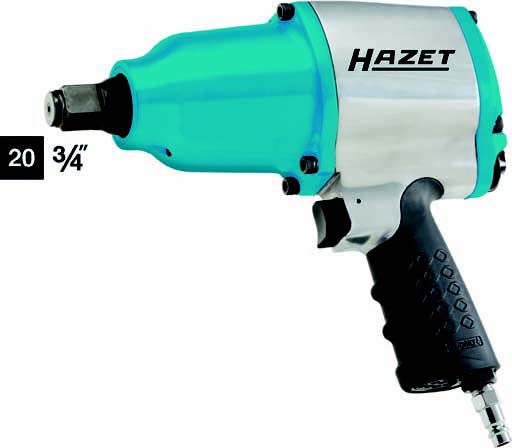

Impact Wrench 9013 Square drive ¾"
Square Drive: 20mm (¾")
Screw size: M 30
Rpm max.: 5500
Max. Torque (Nm): 1400
Recommended torque (Nm): 1000
Maximum loosening torque (Nm): 1800
Air inlet thread: 10 mm (⅜")
Coupler plug, nominal size: 7.2
Air con. (l/min): 176
Sound level: 90 dB
Working Press bar: 6.3
Weight: 5.4 kg
- Working pressure: 6.3 bar
- Cold-insulated handle
- Coupler plug,
nominal size 7.2 included
- Exhaust air is guided through
the handle downwards
- Reduced vibrations
- Multiple power settings
in forward and reverse
- Easy handling
- Light (5.16 kg) magnesium
housing lighter than comparable
aluminium housings
- Powerful twin
hammer mechanism
- Max. loosening torque:
1800 Nm
- Recommended torque:
up to 1084 Nm
- Screw size: M 30
- Air consumption: 198 l / min
- Air inlet thread: 10 mm (⅜”)
- Sound pressure level: Lp A 96.8 dB(A)
|
