BISHAMON - HYDRAULIC STACKERS
| ST-50H | ST-25H | STS38 |
|
ST-50H
SPECIFICATIONS:
| |
Model |
ST-50H |
| |
Capacity(Kgs.) |
500 |
| A |
Vertical Travel(mm) |
1,500 |
| B |
Fork Min.Height(mm) |
90 |
| C |
Fork Max Height(mm) |
1,590 |
| D |
Overall Height(mm) |
1,969 |
| E |
Overall Width(mm) |
683 |
| F |
Overall Length(mm) |
1,106 |
| H |
Max.Width of forks(mm) |
600 |
| I |
Min.Width of forks(mm) |
232 |
| G |
Fork Length(mm) |
600 |
| J |
Fork Width(mm) |
110 |
| K |
From Front wheel shaft to Fork End(mm) |
69 |
| * |
Location of Fork at lowered position |
A |
| |
Approx.Strokes to Max. Height |
71 times |
| |
Lifting per stroke(mm) |
21 |
| L |
Load Center(mm) |
300 |
| |
Outside Distance Between Arms(mm) |
591 |
| |
Inside Distance Between Arms(mm) |
391 |
| |
Front Wheel(Polyurethane) ODxW(mm) |
70*73 |
| |
Rear Wheel(Polyurethane) ODxW(mm) |
150*42 |
| O |
Minimum Turning Radius(mm) |
1,026 |
| |
Weight(Kgs.) |
156 |
| |
Model No. with Quick Lifting Device |
ST50H |
*Location of Fork at lowerd position A:On top of Arm, B:At side of Arm Specifications are subject to change without notice.
Back to top
ST-25H
SPECIFICATIONS:
| |
Model |
ST-25H |
| |
Capacity(Kgs.) |
250 |
| A |
Vertical Travel(mm) |
1,500 |
| B |
Fork Min.Height(mm) |
88 |
| C |
Fork Max Height(mm) |
1,588 |
| D |
Overall Height(mm) |
1,893 |
| E |
Overall Width(mm) |
645 |
| F |
Overall Length(mm) |
992 |
| H |
Max.Width of forks(mm) |
628 |
| I |
Min.Width of forks(mm) |
125 |
| G |
Fork Length(mm) |
550 |
| J |
Fork Width(mm) |
60 |
| K |
From Front wheel shaft to Fork End(mm) |
117 |
| * |
Location of Fork at lowered position |
B |
| |
Approx.Strokes to Max. Height |
53 times |
| |
Lifting per stroke(mm) |
28 |
| L |
Load Center(mm) |
300 |
| |
Outside Distance Between Arms(mm) |
502 |
| |
Inside Distance Between Arms(mm) |
360 |
| |
Front Wheel(Polyurethane) ODxW(mm) |
80*32 |
| |
Rear Wheel(Polyurethane) ODxW(mm) |
100*32 |
| O |
Minimum Turning Radius(mm) |
822 |
| |
Weight(Kgs.) |
67 |
| |
Model No. with Quick Lifting Device |
ST25H |
*Location of Fork at lowerd position A:On top of Arm, B:At side of Arm Specifications are subject to change without notice.
Back to top

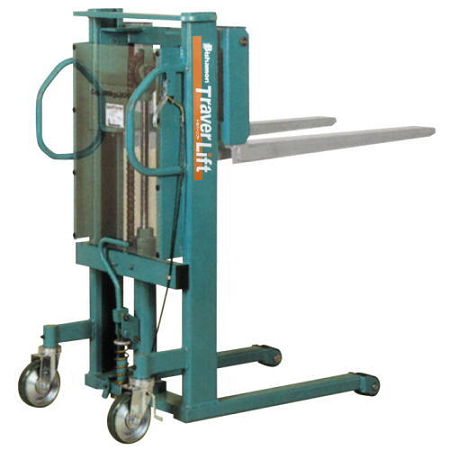

STS38
SPECIFICATIONS:
| |
Model |
STS38 |
| |
Capacity(Kgs.) |
380 |
| A |
Vertical Travel(mm) |
750 |
| B |
Fork Min.Height(mm) |
90 |
| C |
Fork Max Height(mm) |
840 |
| D |
Overall Height(mm) |
1,251 |
| E |
Overall Width(mm) |
683 |
| F |
Overall Length(mm) |
1,306 |
| H |
Max.Width of forks(mm) |
600 |
| I |
Min.Width of forks(mm) |
232 |
| G |
Fork Length(mm) |
1,000 |
| J |
Fork Width(mm) |
110 |
| K |
From Front wheel shaft to Fork End(mm) |
354 |
| * |
Location of Fork at lowered position |
A |
| |
Approx.Strokes to Max. Height |
37 times |
| |
Lifting per stroke(mm) |
20 |
| L |
Load Center(mm) |
400 |
| |
Outside Distance Between Arms(mm) |
591 |
| |
Inside Distance Between Arms(mm) |
391 |
| |
Front Wheel(Polyurethane) ODxW(mm) |
70*73 |
| |
Rear Wheel(Polyurethane) ODxW(mm) |
150*42 |
| O |
Minimum Turning Radius(mm) |
1,026 |
| |
Weight(Kgs.) |
135 |
| |
Model No. with Quick Lifting Device |
- |
*Location of Fork at lowerd position A:On top of Arm, B:At side of Arm Specifications are subject to change without notice.
Back to top
|
The products shown above are only a small part
of series,
please contact us for
your enquiry.
|
| |
