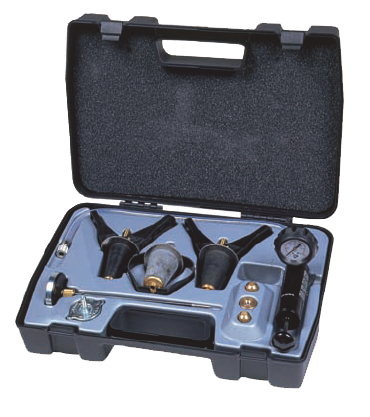

Cooling System Pressure Testing ‘319’ Series 33190000
Expansion Plug System Test Kit - Car Kit

03190100
Pump, gauge and hose assembly
Universal expansion plugs x 3
(applications range from 21mm to 50mm apertures)
Safety retaining clamp
Thermometer
Small bayonet adaptor for Japanese vehicles

03191500
Optional extra : Stepped expansion plug for Mercedes
(applications range from 27mm to 44mm)

Technical: 33190000 Expansion Plugs

D
⌀A
⌀A
Expanded
⌀B
⌀B
Expanded
⌀C
⌀C
Expanded
03191100
70
21
24
30
32
38
38
03191200
70
27
29
35
37
42
42
03191300
70
33
36
41
44
50
50
Note: All dimensions in millimetres

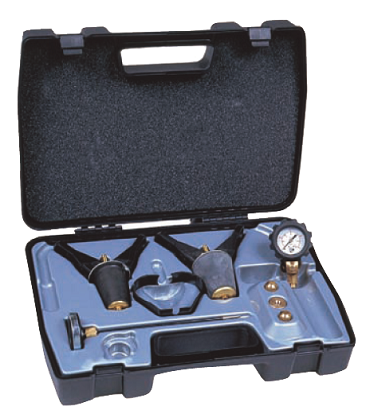

Cooling System Pressure Testing ‘319’ Series 33190500
Expansion Plug System Test Kit - Commercial Kit

03193000
Airline adaptor and gauge assembly, for fast pressurising of large capacity
systems on Commercial Vehicles and Plant equipment
Universal expansion plugs x 2
(applications range from 33mm to 65mm apertures)
Safety retaining clamp
Thermometer
Small bayonet adaptor for Japanese vehicles

03191500
Optional extra : Stepped expansion plug for Mercedes
(applications range from 27mm to 44mm)

Technical: 33190500 Expansion Plugs

D
⌀A
⌀A
Expanded
⌀B
⌀B
Expanded
⌀C
⌀C
Expanded
03191300
70
33
36
41
44
50
50
03191400
70
40
44
53
56
65
65
Note: All dimensions in millimetres


Petrol Engine Compression Tester 31400000

Checks cylinder compression to assist in the diagnosis of faulty valves,
piston rings, cylinder heads and gaskets.
Large, shock protected, easy to read dual scale gauge, for quick and accurate checks
• Pressure relief valve allows repeated cylinder tests, without removing the gauge
• Dual threads (M14 & M18) for quick and easy connection to spark plug ports


Specification:-
• 300mm flexible rubber hose
• M14 / M18 dual thread coupling
• Gauge scale 0 - 20bar, 0 - 190psi.
• Gauge diameter 83mm
• Gauge to DIN16005, DIN16063, BS1780 standards


Petrol Engine Compression Tester - Extra Long Hose 31402000
Similar to 31400000 Petrol Compression Tester but with extra-long flexible
rubber hose for easy access to restricted plug ports

• Fitted with extra-long 460mm rubber hose
• Specification as per 31400000


Petrol Engine Compression Tester Kit 31400300

Comprehensive kit, based on the 31400000 Petrol Compression tester.
Suitable for vehicles with M10, M12, M14 and M18 Spark plug threads.
Supplied complete with extensions, thread chasers and service kit.

Set Contents
• Petrol Compression Tester Gauge 31400000 - 1
• Spark Plug Port extensions M10, M12, M14 (2), M18 - 5 in total
• Thread Chaser M14 / M18 - 1
• Thread Chaser M10 / M12 - 1
• Service Kit of non-return valves and O-rings - 1

Optional Individual Spark Plug port extensions:
• 31400200 Deep Extension M14 x 1.25 x 63mm
• 31400400 M14 Extension Set - M14 x 1.25 x 63mm and M14 1.25 x 94mm
• 31400600 Deep Extension M14 x 1.25 x 94mm
• 31400700 M18 Extension - M18 x 1.5 x 57mm
• 31400900 Extra-Long Flexible Adaptor M14 x 158mm for Ford Zetec / Duratec
• 31401000 M10 Extension - M10 x 1.0 x 57mm
• 31401200 M12 Extension - M12 x 1.25 x 57mm
• 31401100 Long reach petrol compression adaptor M12 x 380mm



Spare Parts:
• 31400500 Service Kit for 31400000 Compression Tester

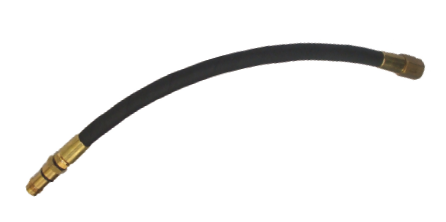

31401100
Renault M12 extra long flexible adaptor

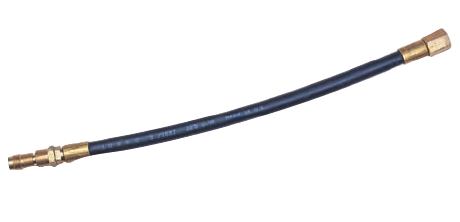

31400900
Ford Zetec / Duratec extra long flexible adaptor
The products shown above are only a small part of series,
please contact us for your enquiry.
