Hydro-Pulse Wrench
Model : HPW-6

Only one unit is available for stock clearance.

The Three-Blade Mechanism Featuring High Performance with Low Vibration
Class : Wrench Type
Shape : Pistol type
Capacity Bolt diameter(mm) : M5~M6
Applicable torque (Air pressure) 5kgf/cm² : 5.0
Applicable torque (Air pressure) 6kgf/cm² : 5.7
No-load revolutions (Air pressure) 5kgf/cm² : 8600
No-load revolutions (Air pressure) 6kgf/cm² : 8900
Square drive size(mm) : 9.5
Overall length (Approx.)mm : 161
Weight (Approx.)mm : 1.06
Dimension from the shaft center to the outside (Approx.)mm : 23.5
Air consumption Nm³/min : 0.40
- Back to top -

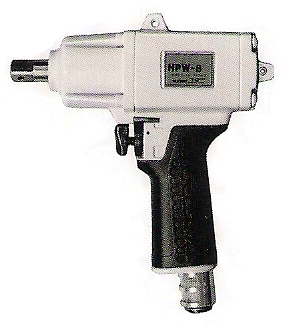

Hydro-Pulse Wrench
Model : HPW-8a

Only one unit is available for stock clearance.

The Three-Blade Mechanism Featuring High Performance with Low Vibration
Class : Wrench Type
Shape : Pistol type
Capacity Bolt diameter(mm) : M8~M10
Applicable torque (Air pressure) 5kgf/cm² : 8.0
Applicable torque (Air pressure) 6kgf/cm² : 9.7
No-load revolutions (Air pressure) 5kgf/cm² : 6600
No-load revolutions (Air pressure) 6kgf/cm² : 6800
Square drive size(mm) : 12.5
Overall length (Approx.)mm : 184
Weight (Approx.)mm : 1.65
Dimension from the shaft center to the outside (Approx.)mm : 28.5
Air consumption Nm³/min : 0.50
- Back to top -


Hydro-Pulse Wrench
Model : HPW-10a

Only one unit is available for stock clearance.

The Three-Blade Mechanism Featuring High Performance with Low Vibration
Class : Wrench Type
Shape : Pistol type
Capacity Bolt diameter(mm) : M10~M12
Applicable torque (Air pressure) 5kgf/cm² : 13.0
Applicable torque (Air pressure) 6kgf/cm² : 14.0
No-load revolutions (Air pressure) 5kgf/cm² : 4700
No-load revolutions (Air pressure) 6kgf/cm² : 4900
Square drive size(mm) : 12.5
Overall length (Approx.)mm : 189
Weight (Approx.)mm : 2.20
Dimension from the shaft center to the outside (Approx.)mm : 33.5
Air consumption Nm³/min : 0.50
- Back to top -



The products shown above are only a small part of series,
please contact us for your enquiry.
