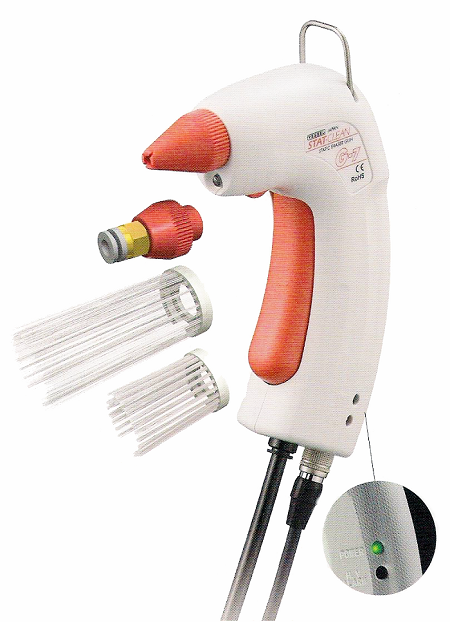

G7 (Stat Clean Gun)


Features
  • Safe design incorporates a built-in power transformer
  • Quick change discharge needle for easy cleaning
  • Low noise won't affect other electronic devices
  • Ergonomic handle
  • LED light beam illuminates area

    The G7 is a lightweight and versatile static elimination ion gun, The ergonomic handle is contoured and angle to fit comfortably in your hand. A build-in LED light beam illuminates the work area, to help see any dust or debris to be removed. Optional attachments include a brush tip and a concent nozzle for attaching an air tube.


- Back To Top -

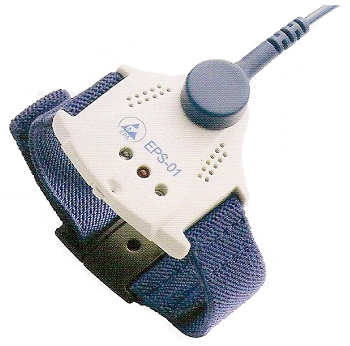

EPS-01 (Ground Sensor)


SPECIFICATIONS
Detection center : ABS Resin made
Metal Part : Stainless steel (SUS316L)
Band : Synthetic
Band Length : About 180mm
Resistance : Metal to Ground Cord About 2MΩ
Accessories : Ground Cord, Full Length 1.8m
1MΩ Currency Limit Resistor applied and Crocodile Clip
Bayyery : CR1220
Life : 8H/day X 500days or so.
Or 15 Hours after you left it switched on "Beep".


- Back To Top -

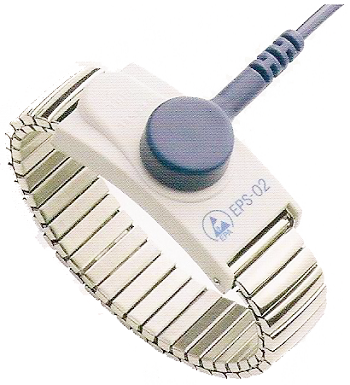

EPS-02 (Metal Band)


SPECIFICATIONS
Snap Hook Plate : ABS Resin made
Metal Part : Stainless steel (SUS316L)
Band : Stainless steel (SUS304)
Band Length : About 130mm (No.EPS-02S) / About 160mm (No.EPS-02M)
Resistance : 1MΩ resistor or more between Band Part and Ground Cord
Accessories : Ground Cord, Full Length 1.8m
1MΩ Currency Limit Resistor applied and Crocodile Clip


- Back To Top -

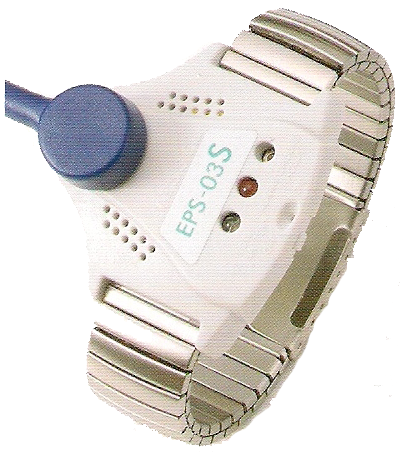

EPS-03 (Ground Sensor (Metal Band))


SPECIFICATIONS
Product name : Ground Sensor (Metal Band)
Product No. : EPS-03M, EPS-03S
Size : EPS-03M (167mm) / EPS-03S (132mm)
Resistance : Approx. 2MΩ between the body and ground cord
Accessori Ground cord (max. length: 1.8 m): 1, alligator clip: 1,
CR1220 battery for test: 1
Qty. in package : 20


- Back To Top -

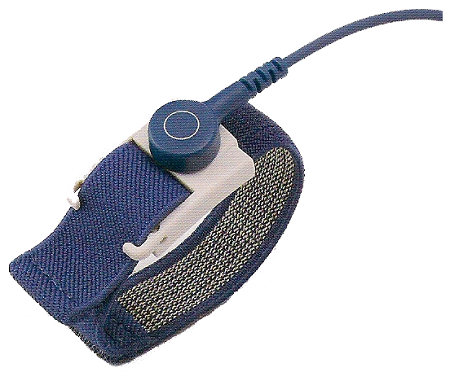

EPS-04 (Esd Solution Wrist Strap)


SPECIFICATIONS
Mode No. : No. EPS-04
Main Unit : Polycarbonate
Metal Part : Stainless steel (SUS316L)
Band : Conductive fiber and cloth
Band Length : Approximately 200 mm
Resistance : 1MΩ resistor or more between Band Part and Ground Cord
Accessories : Ground Cord: 1.8 m
1MΩ Currency Limit Resistor applied and Crocodile Clip


- Back To Top -

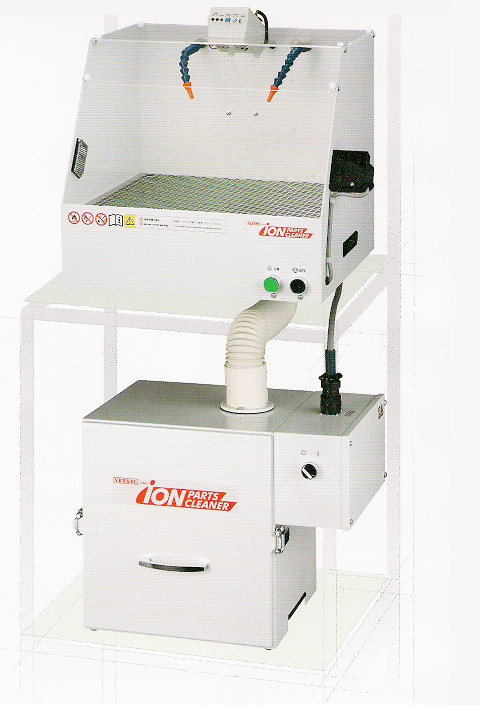

IPC40-E (Ion Parts Cleaner)


Features
  • The hood that enables effective use of the limited
    workspace and the dust collector are separated.
  • An infrared sensor automatically controls dust removal air,
    so it can be operated with one hand, whereby boosting effciency.
  • The air blow time can be adjusted between 0.5 and 5 seconds.
    (Initial setting is 3 seconds.)
  • FLEXIBLE AIR NOZZLE. The air nozzle can make fine adjustment
    to the direction of the air blower.
  • Hood opening is W450XH220mm, which supports wide work pieces.
  • Transparent acrylic sheet used of the ceiling, making the inside of the
    hood bright and easier to operate.
  • Installed with a small powerful inoizer (static electricity eraser),
    mini fan type, SDJ-08.

    The IPC40-E generates stable ionized air within its large hood
    and then sprays powerful air from its flexible nozzles to blow
    off foreign matter. The foreign matter that has been blown off is
    compulsorily collected by a dust collector to maintain a clean workplace.


- Back To Top -

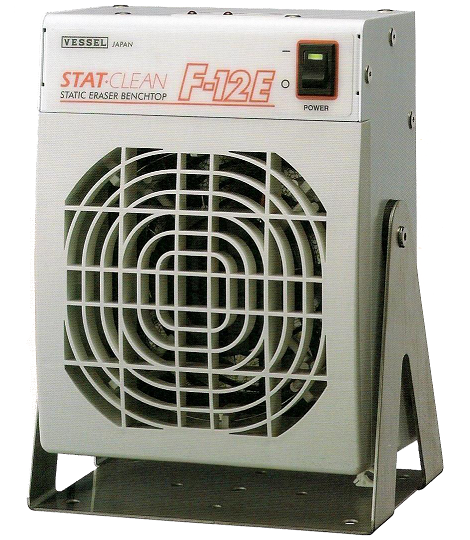

F-12E (Stat Clean Fan)


Features
  • A New concept round electrical discharge unit provides a highly accurate
    ion balance of ±5 V or less.
  • Highly reliable piezo alternating cuttent will generate very little deterioration
    of the ion balance.
  • Compact design os perfectly suitable for cell production machines.
  • Adjustment dial provides step-less adjustment of the fan speed. Quiet 52 dB
    (At maximum fan speed)
  • Power lamp and warning LED lamp are located on top of the unit making
    it easy to see at a glance during operation.

SPECIFICATIONS
Model : No.F12E-E
Iongeneration method : High voltage AC corona discharge
Output Voltage :
AC3.5kV
Input Voltage :
DC24V± 5% 400mmA(max.)
Dimensions :
H180 X W142 X D87 (H200 X W151.5 X D95 Includding stand) mm
Weight :
1.4kg
Fan Speed :
2.9m³/min (Max. fan speed)
Nosied emission :
52dB(A) Max. fan speed (Measured at 1m)
Ozone :
0.05ppm or less (Measured at 50mm)
Working ambient Temperature/humidity :
0 - 60C / 35 - 65%RH (No dewing)
Distance from target area :
150 - 900 mm (Installation location: Non-dangerous indoor location)
Static electricity removal time :
Reter to the items in the capabilities chart.
Ion balance : Within ±5V (At 300mm)
Accessories : Adapter No.AD24-IT-EX
Consumabes : Wire plate : F-12EH Fitter : F-12EF
