TYRE CARE EQUIPMENT > TYRE PRESSURE GAUGES

TPG1
TPG20
TPG3H01
TPG4
TPG57H03
TPG60H03
DUSG1
TPG54H03 DAC51
DAC54 Dial Type Tyre Pressure Gauge DTPG8
TYRE SAFETY PACK DTPG7 N2A001

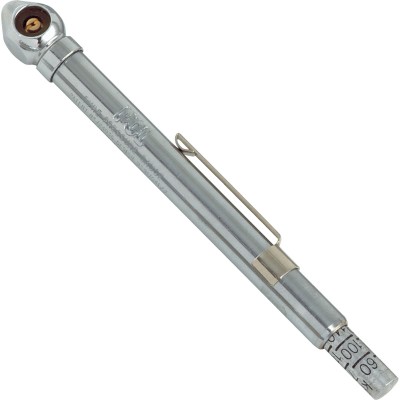

TPG1 Tyre Pressure Gauge

The TPG1 is a Pocket Tyre Pressure Gauge with an angled head designed to fit onto the tyre valve at 90 degrees.

PCL's TPG1 Pocket Tyre Pressure Gauge incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve, and a positive sealing washer to ensure reliability. Features integral pocket clip and removable protective cap.

Specifications:

  • Head Type: Angled
  • Calibration: 6-50 psi / 0.5-3.4 bar
  • Reading Resolution: 1 psi / 0.1 bar
  • Accuracy: +/- 2 psi

  • Incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve
  • A positive sealing washer ensures reliability
  • Integral pocket clip and removable protective cap
  • Angled head is designed to fit onto the valve at 90 degrees




TPG20 Tyre Pressure Gauge

The TPG20 is a tyre pressure gauge with an in-line head, used for where direct access to the tyre valve is required.

PCL's TPG20 Tyre Pressure Gauge incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve, and a positive sealing washer to ensure reliability. Features integral pocket clip and removable protective cap.

Specifications:

  • Head Type: In-line
  • Calibration: 6-50 psi / 0.5-3.4 bar
  • Reading Resolution: 1 psi / 0.1 bar
  • Accuracy: +/- 2 psi

  • Incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve
  • A positive sealing washer ensures reliability
  • Integral pocket clip and removable protective cap
  • In-line head is used where direct access to the tyre valve is required

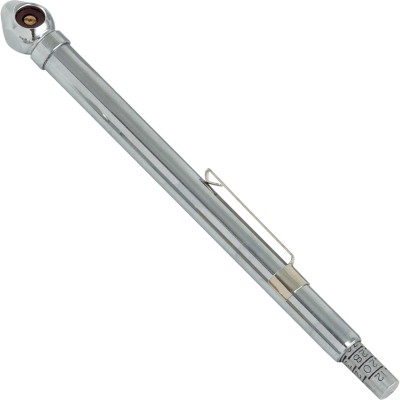

TPG3H01 Tyre Pressure Gauge

The TPG3 is a pocket tyre pressure gauge with an angled head designed to fit onto the tyre valve at 90 degrees.

PCL's TPG3H01 Tyre Pressure Gauge incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve, and a positive sealing washer to ensure reliability. Features integral pocket clip and removable protective cap.

Specifications:

  • Head Type: Angled
  • Calibration: 10-120 psi / 0.8-8.2 bar
  • Reading Resolution: 2 psi / 0.2 bar
  • Accuracy(up tp 100 psi): +/- 2 psi
  • Accuracy(over 100 psi): +/- 3 psi

  • Incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve
  • A positive sealing washer ensures reliability
  • Integral pocket clip and removable protective cap
  • Angled head is designed to fit onto the valve at 90 degrees




TPG4 Tyre Pressure Gauge

The TPG4 is a "service" pocket tyre pressure gauge, suitable for commercial vehicles.

PCL's TPG4 Tyre Pressure Gauge incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve, and a positive sealing washer to ensure reliability. Features integral pocket clip and removable protective cap.

Specifications:

  • Head Type: Twin
  • Calibration: 10-120 psi / 0.8-8.2 bar
  • Reading Resolution: 2 psi / 0.2 bar
  • Accuracy(up tp 100 psi): +/- 2 psi
  • Accuracy(over 100 psi): +/- 3 psi

  • Incorporates a self-adjusting friction device which enables the pressure to be read when the tyre pressure gauge is removed from the tyre valve
  • A positive sealing washer ensures reliability
  • Integral pocket clip and removable protective cap
  • Twin headed gauge is suitable for commercial vehicles




TPG57H03 Universal Service Gauge (complies to BS EN 12645:2014)

Engineered for longevity and hard usage, the TPG57 Universal Service Gauge has a chrome-plated tube with lanyard ring.

The TPG57 Universal Service Gauge is suitable for cars and commercial vehicles, it is fitted with an extra large filter to protect the quality mechanism, and is supplied carton packed.

Specifications:

  • Head Type: Twin
  • Calibration: 10-160 psi / 0.8-11 bar
  • Reading Resolution: 2 psi / 0.2 bar
  • Accuracy: +/- 2 psi

  • Engineered for hard usage over a long period of time
  • Suitable for all cars and commercial vehicles
  • Fitted with an extra large filter to protect the quality mechanism
  • Chrome plated tube with lanyard ring




TPG60H03 Heavy Duty Universal Service Gauge (complies to BE EN 12645:2015)

The heavy duty TPG60 Heavy Duty Universal Service Gauge has a black vulcanite handle to withstand rigorous use over a long period.

THe TPG60 Heavy Duty Universal Service Gauge is suitable for cars and commercial vehicles, it is fitted with an extra large filter to protect the quality mechanism, and is supplied carton packed.

Specifications:

  • Head Type: Twin
  • Calibration: 10-160 psi / 0.8-11 bar
  • Reading Resolution: 2 psi / 0.2 bar
  • Accuracy: +/- 2 psi

  • Engineered for hard usage over a long period of time
  • Suitable for all cars and commercial vehicles
  • Fitted with an extra large filter to protect the quality mechanism
  • Black vulcanite handle

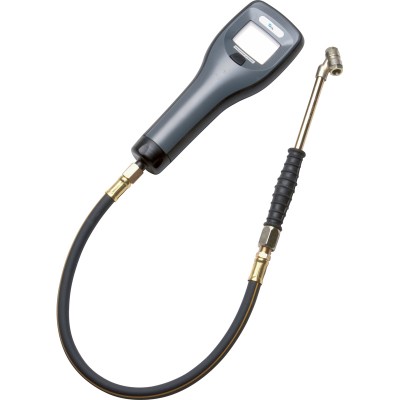

DUSG1 Digital Universal Service Gauge

This Digital Universal Service Gauge is self-calibrating and features a 90 second auto power off..

Easy to use, simply press the button and wait for the beep - the Digital Universal Service Gauge is then ready to use. Tyre pressures are displayed in your choice of 4 pressure measurements. Ideal for commercial vehicles when reading high volume tyres.

Specifications:

  • Head Type: Twin
  • Battery: x2 LR44 and x1 CR2032
  • Calibration: 0-170 psi / 0.8-11 bar
  • Reading Resolution: 0.5 psi / 0.005 bar/ 10kpa
  • Accuracy: +/- 1%
  • Dimensions: 290 x 36 x 24 mm

  • 4 measurement options - psi / bar / kPa / kg/cm²
  • Swivel head to allow easy access to the tyre valve
  • Clear large display
  • Ergonomic handle for comfort in use
  • Lightweight body with robust steel shaft and head
  • Replaceable batteries (x2 LR44 and x1 CR2032)
  • Red backlit screen for easy reading in dark or low light areas




TPG54H03 Twin Head Pressure Gauge

The Twin Head Pressure Gauge is suitable for use with the standard (8v1) and large bore (12v1) tyre valves.

With its hard-wearing black vulcanite handle, the TPG54 Twin head Pressure Gauge is designed to withstand continual heavy usage.

PCL also offer a reconditioning and recalibration service for this product, please quote RPR1H02.

Specifications:

  • Head Type: 8v1 and 12v1
  • Calibration: 50-300 psi / 4-20 bar
  • Reading Resolution: 5 psi / 0.2 bar
  • Accuracy: 5 psi

  • Black vulcanite handle to withstand continual heavy usage
  • Suitable for use with the standard (8v1) and large bore (12v1) tyre valves




DAC51 Digital High Pressure Gauge

The DAC51 Digital High Pressure Gauge are the latest in the line of quality high pressure measuring equipment from PCL.

PCL's Digital High Pressure Gauge is built for fast, safe and accurate tyre pressure measurement in rugged and testing environments they are the ideal tool for high pressure applications.

Specifications:

  • Head Type: 8v1 twin hold-on and 12v1 in-line
  • Accuracy: Exceeds EC Directive 86/217

  • Includes 2 tyre valve connector types of 8v1 and 12v1 designation
  • Clear digital readout display
  • Highly accurate reading resolution
  • Equipment contained within a moulded foam cut-out with a sturdy yellow plastic carry case for easy identification
  • Allows pressure to be measured and stored for easy reading via the hold function
  • 100% individually tested and certified

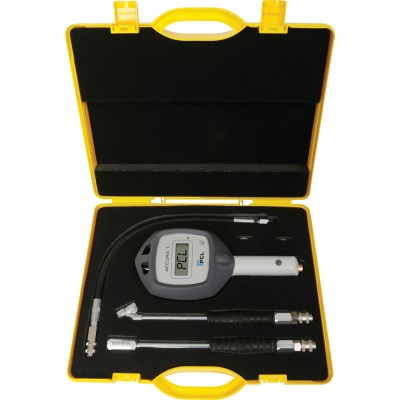

DAC54 Digital Aviation Pressure Gauge

The DAC54 Digital Aviation Pressure Gauges are the latest in the line of quality high pressure measuring equipment from PCL.

PCL's Digital Aviation Pressure Gauge is built for fast, safe and accurate tyre pressure measurement in rugged and testing environments they are the ideal tool for aviation applications.

Specifications:

  • Head Type: 8v1 twin hold-on and 12v1 in-line
  • Accuracy: 0.2 bar / 3 psi

  • Includes 2 tyre valve connector types of 8v1 and 12v1 designation
  • Clear digital readout display
  • Highly accurate reading resolution
  • Equipment contained within a moulded foam cut-out with a sturdy yellow plastic carry case for easy identification
  • Allows pressure to be measured and stored for easy reading via the hold function
  • 100% individually tested and certified
  • 0.3m of Skydrol resistant hose

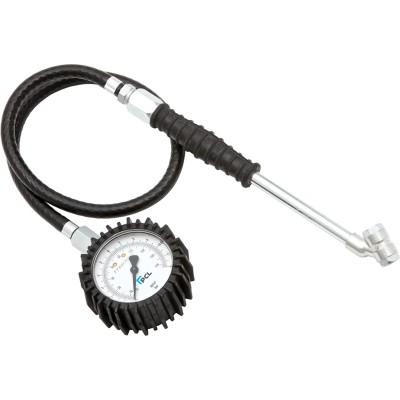

Dial Type Tyre Pressure Gauge
(DPG3 Complies toEC Directive 86/217 and BS EN 12645:2014)

The dial Type Tyre Pressue Gauge (Tyrecheck) is the professional's choice of dial pressure gauge for fast, clear and accurate readings.

With a choice of 63mm or 80mm diameter dial, and single clip-on or twin hold-on connectors, the Dial Type Tyre Pressure Gauge has a rubber surround for impact absorption.

Specifications:

  • DPG1 Accuracy: 1.6% fsd
  • DPG3 Accuracy: EC Directive 86/217 and BS EN 12645:2014
  • Calibration: 0-170 psi / 0-12 bar
  • Reading Resolution: 2 psi / 0.1 bar

  • Dial gauge, accurate and easy to read
  • Surrounded in rubber for impact absorption




DTPG8 Digital Tyre Pressure Gauge

This Digital Tyre Pressure Gauge is self-calibrating and features a 30 second auto power off.

Easy to use, simply press the "ON" button and the Digital Tyre Pressure Gauge is then ready to use. Tyre pressures are displayed in your choice of 4 pressure measurements.

Specifications:

  • Head Type: Straight & Angled
  • Battery: 2 x AAA / LR03
  • Calibration: 0-174 psi / 0-12 bar / 0-1200 kPa
  • Reading Resolution: 0.2 psi / 0.01 bar / 1 kPa
  • Accuracy: +/- 1%

  • 4 measurement options - psi / bar / kPa / kg/cm²
  • Clear large display
  • Replaceable batteries
  • Backlit screen for easy reading in dark or low light areas

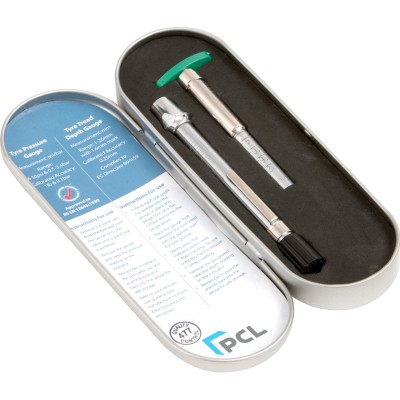

Tyre Safety Pack

The handy Tyre Safety Pack comprises a tyre pressure gauge and tyre tread depth gauge.

The Tyre Safety Pack is supplied in an durable, reusable tin with a protective foam insert.

  • Available with either the TPG1 or TPG20 tyre pressure gauge




DTPG7 Digital Tyre Pressure & Tread Depth Gauge

This 3-in-1 Digital Tyre Pressure and Tread Depth Gauge with light is self-calibrating and features a 90 second auto power off.

Easy to use, with a stylish blue light is ideal for working in the dark. This Digital Tyre Pressure and Tread Depth Gauge measures in; psi, bar, kPa, kgf/cm², mm and inch.

Auto Express Recommended 2012 - Pressure Gauges

Specifications:

Tyre Pressure:

  • Calibration: 2-100 psi / 0.15-7 bar / 15-700 kPa
  • Reading Resolution: 0.1 psi / 0.01 bar / 1 kPa / 0.01 kg/cm²
  • Accuracy: +/- 1.5%

Tyre Tread Depth
  • Calibration: 0-15 mm
  • Reading Resolution: 0.01 mm / 0.001 in
  • Accuracy: +/- 0.2 mm

  • Measures pressure in psi / bar / kPa / kgf/cm²
  • Measures tyre tread depth in mm / inch
  • Auto power off
  • Self calibrating




N2A001 Nitrogen Analyser

The ACCURA Nitrogen Analyser gives you the actual Nitrogen percentage in your tyres.

Most other systems in the market show you the Oxygen percentage and require a calculation to convert it to the Nitrogen percentage.

The rugged ergonomic design of this Nitrogen Analyser enables ease of use in motor racing pits, workshops, fleet control, tyre stores, lube shops and auto dealerships. Ease of use, fast reaction time and large digital display make the ACCURA Nitrogen Analyser the perfect choice.

The battery life is extended by an automatic power off function. Both the sensor and battery can be easily replaced.

Do not connect the ACCURA Nitrogen Analyser to closed pressure systems above 175 psi, 12 bar or 1200 kPa.

Specifications:

  • Measurement Range: 70-100 % Nitrogen
  • Display Resolution: 0.1 vol%
  • Measurement Cycle: 0.5 secs
  • Response Time (90%): Less than 2 secs
  • Auto Off Time Delay: 5 mins
  • Accuracy: +/- 0.5 vol% from 0 to 50 vol%
  • Accuracy: +/- 2 vol% from 50-99 vol%

  • Accurate and easy to use
  • Compact and ergonomic design
  • Simple to operate - one button operation
  • Battery charge indicator
  • Auto-power off function
  • Replaceable battery and sensor
  • Auto diagnostic with Error Code to simplify troubleshooting




The products shown above are only a small part of series,
please contact us for your enquiry.
