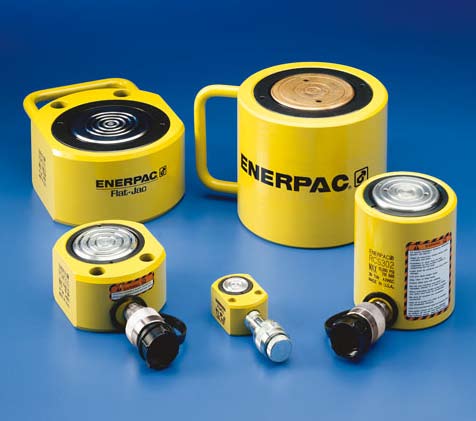

BRANDS > ENERPAC > LOW WEIGHT CYLINDERS




Cylinder CapacityStrokeModel NumberCylinder Effective AreaOil CapacityCollapsed HeightExtended HeightOutside DiameterWeight
ton (kN)mmcm2cm3mmmmmmkg
5 (45)6RSM-501)6,54323858 x 411
10 (101)12RSM-10014,518435482 x 551,4
20 (201)11RSM-20028,7325162101 x 763,1
30 (295)13RSM-30042,1555871117 x 954,5
45 (435)16RSM-50062,1996682140 x 1146,8
75 (718)16RSM-750102,61647995165 x 13911,3
90 (887)16RSM-1000126,720385101178 x 15314,5
150 (1368)16RSM-1500198,1317100116215 x 19026,3
10 (101)38RCS-101*14,55588126694,1
20 (201)45RCS-201*28,712998143925
30 (295)62RCS-302*42,12611171791016,8
45 (435)60RCS-502*62,137312218212410,9
90 (887)57RCS-1002*126,772214119816522,7
1) RSM-50 is fitted with an AR-400 coupler. Available as set, see note on next page.
*Also available as cylinder-pump sets.
